High-Quality & Longer Lasting Impact Bar

DuraGBar60 Pro

DuraGBar60Pro- Blue is made with NR/SBR rubber blend reinforcement. Its tensile strength, hardness, and elongation make it ideal for applications in harsh and rugged environments. They have excellent shock absorption and structural integrity in such applications.
From applications in metal and steel handling conveyors to dockside loading conveyors, the DuraGBar60 Pro- Blue offers excellent performance.

This high performance lifter bar is engineered to withstand heavy loads while lifting and supporting the materials during transit. Thus, it improves the system uptime and reduces the fatigue of the belts.

DuraGBar60 Pro Impact Bar: Technical Specifications

Item Name Grade Polymer Polymer Content Color Tensile Strength Elongation at Break Specific Gravity Hardness Abrasion Surface Finish Recommended Dimension Recommended Use Temp. Range(°C)
DuraGBar60 Pro – Blue PRO NR/SBR Blue 18 MPa (min) 450% 1.20 ± 0.05 60 ± 5° Shore A 120 mm³ (max) 33 mm X 200 mm X 1200 mm
33 mm X 250 mm X 1200 mm
33 mm X 300 mm X 1200 mm
-30° to + 70° C

Features of DuraGBar60 Pro Impact Bar and Benefits to the Users

Rugged Build

NR/SBR formulation endures heavy, abrasive conditions.

Strong Support

Provides stable contact for lifting bulk materials.

Smooth Flow

Low friction surface enables easy material movement.

Shape Stability

Maintains form under heat, stress, and load.

Longer Protection

Reduces belt wear and frequent maintenance cycles.

Safer Operations

Enhances reliability and stability at impact zones.

Major Applications of DuraLBar60 Pro Impact Bar

  • Mining conveyors handling coarse ores and stones
  • Steel and metal handling conveyors with repeated drops
  • Primary crusher discharge and screen feed chutes
  • Cement industry conveyors with rugged drop impact points
  • High-load coal and lignite conveyor sections
  • Foundries and mineral handling lines
  • Heavy-duty port and dockside loading conveyors

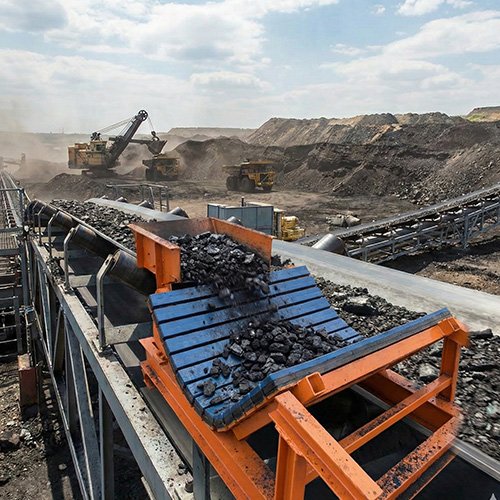

DuraGBar60 Pro Blue - High-Strength Lifter Bar Application Image
