Abrasion Resistant Rubber Sheet
Abrasion resistant rubber sheet is natural rubber (NR/SBR) compounded at high polymer concentration with specific formulation to maximise resistance to surface wear, cutting and impact. It is the specification material for applications where rubber components face continuous contact with abrasive media like shot blasting chambers, ore chutes, conveyor skirting, hopper liners and mining equipment surfaces. Duratuf's abrasion resistant range, the Abra series, spans five grades from Abra40 Pro to Abra38 Max, covering tensile strengths from 15 MPa to 24 MPa and Shore A hardness from 38° to 60°. Each grade is formulated for a specific balance of hardness, tensile strength, and elongation suited to distinct wear and impact conditions.
What is an Abrasion Resistant Rubber Sheet?
Abrasion resistant rubber sheet is a premium natural rubber (NR/SBR) compound manufactured to resist surface degradation from repeated contact with abrasive particles, sharp edges or sliding media. It is distinguished from general-purpose rubber sheet by higher polymer concentration, high tensile strength and controlled Shore A hardness optimised for the wear mechanism in the target application.
Standard general-purpose rubber sheet (2-3.5 MPa tensile) fails quickly in shot blasting, chute lining and mining applications because it lacks the tensile integrity to resist tearing under abrasive contact. Abrasion resistant grades (15-24 MPa tensile) extend service life by 2-3× or more in the same conditions.
The correct abrasion resistant rubber grade depends on two variables: hardness and tensile strength. Harder grades (60 Shore A) resist surface cutting and sliding abrasion better in dry, high-velocity media zones. Softer grades (38-40 Shore A) absorb impact energy more effectively and resist tearing under dynamic, repeated shock.
- Shot blasting chamber liners and cabinet walls
- Conveyor skirting and impact pads
- Mining chute liners, hopper lining, and ore handling
- Industrial floor protection in high-footfall heavy-duty zones
Types of Abrasion Resistant Rubber Sheet: Duratuf's Abra Grades
Abra38 Max
Offers the highest level of abrasion protection, also the lightest of other variants.
Abra60 Max
Offers a stiffer, more durable option for heavy-duty applications .
Abra40 Max
Has added resistance compared to the Pro versions (beginner variants).
Abra40 Pro
Has hardness of 40 ShoreA, comes in black and colored versions.
Abra60 Pro
Has hardness 60 Shore A- specifically designed to withstand heavy abrasion .
Technical Specification
| Product Name | Polymer | Color | Tensile Strength | Elongation at Break | Hardness | Specific Gravity | Working Temperature (°C) | Finish | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Testing Standard | Specified Value | Testing Standard | Specified Value | Testing Standard | Specified Value | Testing Standard | Specified Value | |||||
| Abra60 Pro | NR/SBR | Black | ASTM D412 | 15.0 | ASTM D412 | 450% | ASTM D2240 | 60 ± 5° Shore A | ASTM D297 | 1.10 ± 0.05 | -30 to +70 | Top & Bottom Plain |
| Abra40 Pro | NR/SBR | Black | ASTM D412 | 15.0 | ASTM D412 | 600% | ASTM D2240 | 40 ± 5° Shore A | ASTM D297 | 1.10 ± 0.05 | -30 to +70 | Top & Bottom Plain |
| Abra60 Max | NR/SBR | Black | ASTM D412 | 20.0 | ASTM D412 | 500% | ASTM D2240 | 60 ± 5° Shore A | ASTM D297 | 1.10 ± 0.05 | -30 to +70 | Top & Bottom Plain |
| Abra40 Max – Black | NR/SBR | Black | ASTM D412 | 20.0 | ASTM D412 | 750% | ASTM D2240 | 40 ± 5° Shore A | ASTM D297 | 1.05 ± 0.05 | -30 to +70 | Top & Bottom Plain |
| Abra38 Max – Black | NR/SBR | Black | ASTM D412 | 24.0 | ASTM D412 | 800% | ASTM D2240 | 38 ± 5° Shore A | ASTM D297 | 0.98 ± 0.05 | -30 to +70 | Top & Bottom Plain |
How do we ensure certified quality in our Abra Rubber Sheets?
Tensile Strength Tested Per Batch
Every Abra grade batch tested for tensile strength per ASTM D412. Observed values consistently exceed specified minimums, documented and available on request with every shipment.
REACH & RoHS Certified
Free from restricted and hazardous substances. Batch certificates and compliance documentation available with every shipment for export and regulated industrial procurement.
Hardness Verified Per Grade
Shore A hardness measured per ASTM D2240 on every production batch. Hardness consistency is critical for abrasion-resistant applications, a soft batch in a shot blasting chamber fails rapidly.
Specific Gravity Controlled
SG values from 1.10 down to 0.98 for Abra38 Max, precisely controlled compound density that directly determines the weight-to-performance ratio of the installed sheet.

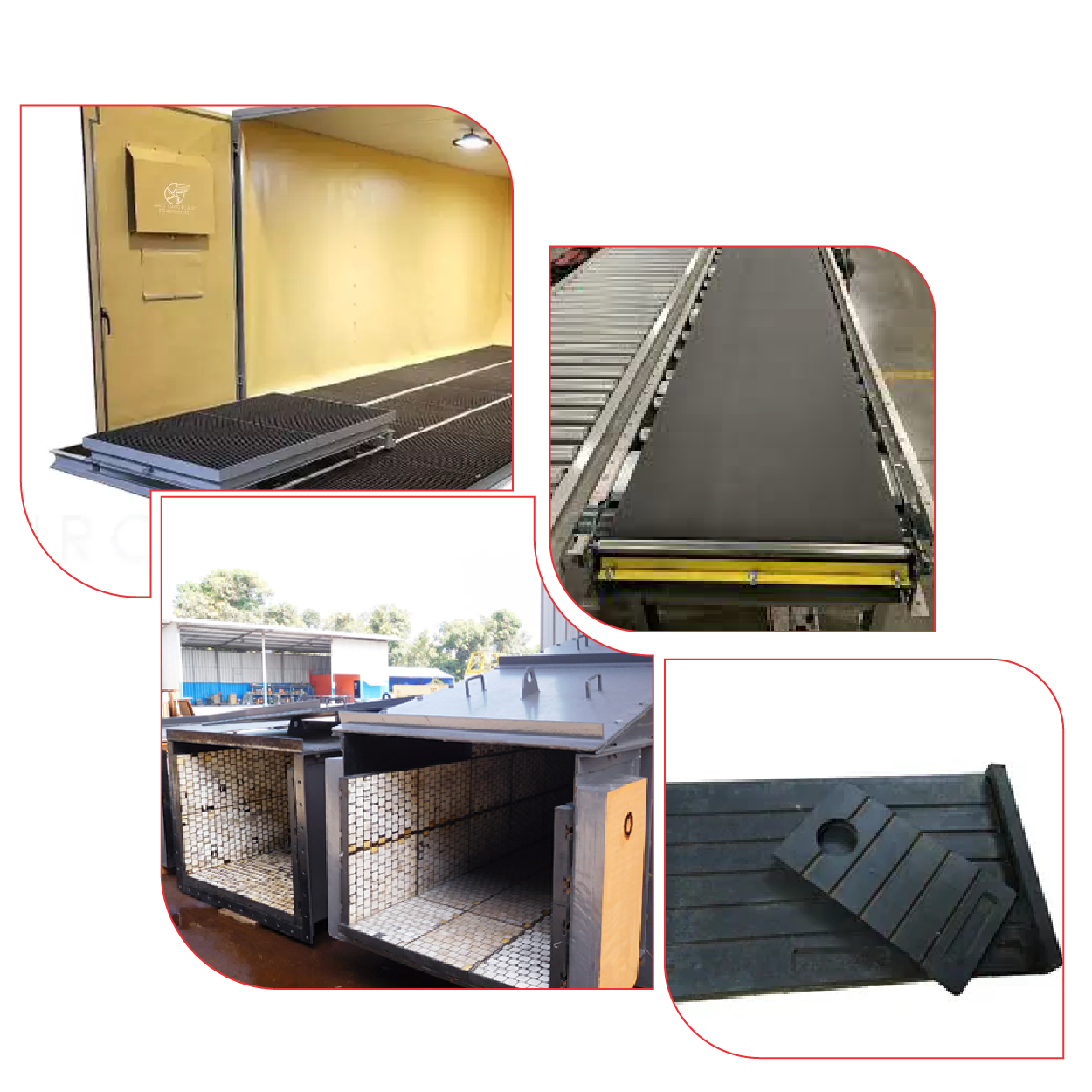

Major Industrial Applications of Abrasion Resistant Rubber Sheet
- Abrasion-Resistant Liners & Skirts: Perfect for chutes, hoppers, conveyor skirt boards, and shot blasting cabinets, these sheets protect equipment from continuous wear during material transfer and handling.
- Vibration & Impact Absorption: Used as impact pads, mechanical bumpers, and anti-vibration mounts under heavy machinery or in dynamic zones, reducing mechanical shock and extending equipment life.

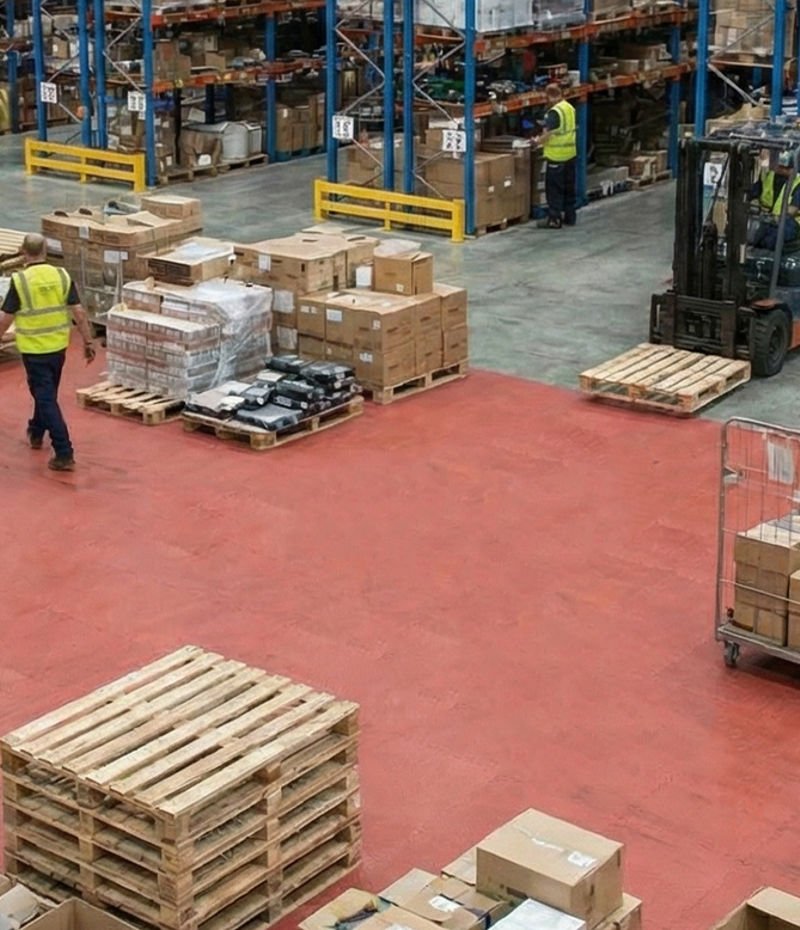

- Industrial & Utility Flooring: Offers rugged performance in warehouses, workshops, gyms, and transport vehicles, acting as durable flooring or matting in high-traffic and heavy-load zones.

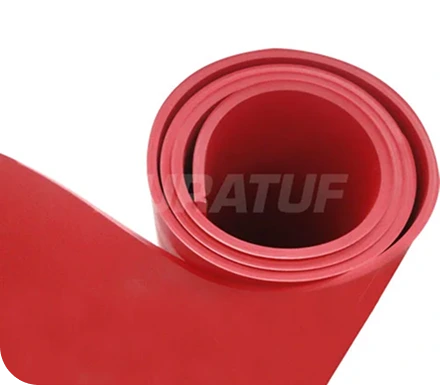

- Color-Coded Safety & Hygiene Applications: Available in Tan, Red, Off White, or Pink variants for HACCP-regulated, food-adjacent, or pharma zones, ensuring non-marking use and visual segregation for safety.
- General Sealing & Buffering: Ideal for dynamic gaskets, belt seals, scrapers, isolation pads, and base support layers, especially where more durability is required than standard rubber grades.
Key Features of Duratuf Abra Rubber Sheets
Duratuf Abra rubber sheets are designed to deliver performance in heavy-duty industrial and commercial setups. Some features of our natural rubber sheets are:
The Abra series spans 15 MPa (Pro grades) to 24 MPa (Abra38 Max) tensile strength, above general-purpose natural rubber (2-3.5 MPa). Higher tensile directly translates to longer service life under abrasive contact.
Abrasion-resistant NR compounds can deliver 2-3× the wear life of standard rubber in sliding abrasion or shot blasting areas, reducing replacement frequency and downtime in high-wear applications.
Hardness selection from 38° to 60° Shore A covers the full spectrum from maximum flexibility and impact absorption (38-40°) to firm surface abrasion resistance (60°). Match hardness to your wear mechanism.
Free from restricted and hazardous substances. Compliance documentation and batch certificates with every shipment for export and regulated industrial procurement.
When you buy Duratuf natural rubber sheets, you invest in productivity and performance equally.
Why Choose Duratuf for Abrasion Resistant Rubber Sheeting?
Shock-absorbtion
More than 800% elongation effectively dampens abrasion
Minimized Wear
Extended industrial surface protection with impact absorption
Durable Strength
Retains shape under extreme mechanical stress
Budget Friendly
Economy to premium- choose as your need
Customer testimonials and success stories
Take a look at what our customers think and say about us
I must say that Duratuf Products provided me EPDM rubber sheets of top quality. The sheets delivered by you guys are perfect for applying in my workplace’s industrial tanks! The order was delivered to us on time so a big thanks to you people.
Omar Hassan
On-time delivery: Thank you Duratuf for the EPDM rubber sheets of top quality. The sheets delivered by you guys are best for applying in my workplace’s industrial tanks! The order was delivered to us on time so a big thanks to the sales and support team.
Chris Taylor
I’ve long sought a dependable solution for our sealing applications. Thanks to your Viton Rubber Sheets, our search is finally over. These sheets have revolutionized our sealing processes, offering unparalleled resistance to extreme temperatures, chemicals, and pressure.
Sakshi B
The Nitrile Rubber Sheets exhibit exceptional resistance to oils, fuels, and abrasion, making them ideal for our demanding applications in the automotive sector. Very happy with customer services.
Rajiv Barua
As the proprietor of a manufacturing unit in Kolkata, India, I’ve relied on Neoprene Rubber Sheets from Duratuf to meet our demanding industrial requirements. The Neoprene material’s resilience against abrasion, weathering, and oil has significantly enhanced the durability of our products.
Anita Singh
As a steel fabrication company based in Mumbai, India, maintaining the integrity of our equipment is essential. These rubber sheets have significantly enhanced the efficiency and safety of our blasting processes.
Vikram Singh
Living in Chennai, India, I’ve struggled to find a reliable solution for my industrial needs until I discovered Silicone Rubber Sheets from Duratuf. The quality of the silicone is impeccable, offering unmatched resistance to extreme temperatures and chemicals, crucial for our diverse applications.
Rajesh Kumar
After placing my first order, I was thoroughly impressed with Duratuf’s easy ordering process and attention to the customer’s needs. The insertion rubber sheet provided to us has surpassed my expectations, proving to be an essential component in our production line.
Steven Miller
I run a small manufacturing unit specializing in inflatable products. We recently switched to Hypalon rubber sheets supplied by Duratuf for our production line, and the difference has been remarkable.
Sarah Johnson
As a customer based in London, I’ve been thoroughly impressed by the Natural Rubber Sheet offered by Duratuf. Its eco-friendly composition aligns perfectly with my values.
R. Patel
Being in the heart of monsoon-prone Mumbai, finding a reliable waterproofing solution was paramount for our construction project. We chose the EPDM Rubber sheets, and it has exceeded our expectations. Thanks to this innovative product, our investment is protected for years to come. Highly recommend it to fellow developers!
Anastasia Ivanova
I must say that Duratuf Products provided me EPDM rubber sheets of top quality. The sheets delivered by you guys are perfect for applying in my workplace’s industrial tanks! The order was delivered to us on time so a big thanks to you people.
Omar Hassan
I recently purchased Butyl Rubber Sheets for a project, and I must say, I am thoroughly impressed with their quality and performance.
João Pereira
The Abrasion Resistant Rubber Sheet exceeded our expectations, providing exceptional protection against wear and tear.
Diego Martinez
The General Purpose Rubber Sheet is a game-changer for us. It seals effectively, withstands extreme conditions, and saves time and resources. Highly recommended for reliable sealing and insulation
Oliver Smith
Frequently Asked Questions: Abrasion Rubber Sheets
What materials are abrasion rubber sheets made from?
Abrasion rubber sheets are made of premium quality natural rubber with some compounds and fillers.
How is abrasion resistance measured in rubber sheets?
Abrasion resistance in rubber sheets is measured by pressing a sample against a rotating abrasive drum in a DIN tester. The resulting volume loss is calculated in cubic millimeters (mm³).
What thicknesses are available in abrasion rubber sheets?
The available thicknesses for Duratuf Abra rubber sheets are: 2, 3, 5, 6, 8, 10 and 12 mm.
What is the difference between abrasion rubber sheets and general-purpose rubber sheets?
Abrasion resistant rubber sheets are specially meant for heavy-duty uses with up to 800% elongation, more than natural rubber sheets. While ordinary natural rubber sheets are good for standard industrial applications, Abra rubber sheets are better in sand, shot blasting, and abrasive conditions.
Can you share some maintenance tips to extend the life of abrasion resistant sheets?
Abrasion resistant rubber sheets stay durable for a long time when each abrasion resistant rubber roll is stored under optimum conditions, away from direct sunlight, extreme temperatures, steam, UV rays, Ozone, etc. For more detailed info, you can directly contact our representatives.
Can abrasion rubber sheets be customized as per requirement?
Yes, Duratuf Abra rubber sheets can be customized as you require in terms of dimension, thickness, color, fabrication, etc. It is better to contact us before you proceed.
How do I choose the right abrasion rubber sheet for my application?
We have Abra rubber sheets in various thicknesses, like 38° Shore A, 40° Shore, and 60° Shore A. We understand that it can be confusing for you to choose among so many options. But now you can book a free video call with our product experts to know which one will fit your applications better.
What is the typical lifespan or durability of an abrasion rubber sheet?
The lifespan or durability of Abrasion rubber sheets depends more on their usage, storage conditions, and other conditions. But the typical abrasion resistance of rubber may last up to 2-3 years.
