Nitrile (NBR) Rubber Sheet
Duratuf provides nitrile (NBR) rubber sheets in four grades covering every oil resistance requirement from basic workshop protection to heavy-duty refinery sealing. Tensile strength ranges from 4 MPa (Nitri65 Lite) to 10 MPa (Nitri65 Max), with working temperatures up to +110°C. All grades are ASTM tested, REACH and RoHS certified, and stocked for ready dispatch. Serving 65+ countries from headquarter in India and warehouse in Dubai.
What is a Nitrile Rubber Sheet?
Nitrile rubber sheet, commonly known as NBR rubber sheet or Buna-N sheet, is a synthetic elastomer made from a copolymer of acrylonitrile and butadiene. It is the industry standard material for applications requiring resistance to petroleum oils, fuels, hydraulic fluids, and greases, outperforming natural rubber, EPDM, and neoprene in direct oil and fuel contact environments.
The oil resistance of an NBR sheet increases with its acrylonitrile (NBR) polymer content. Duratuf provides nitrile rubber sheets across four grades, from 10% to 100% NBR polymer, allowing procurement teams to match the right performance level to their specific application and budget. Tensile strength ranges from 4 MPa (Lite) to 10 MPa (Max), and working temperatures span from -10°C to +110°C across the range.
All Duratuf nitrile rubber sheets are ASTM tested (D412, D2240, D297), REACH and RoHS certified, and available in standard dimensions of 2mm to 12mm thickness x 1.2m x 10m. Both sides carry a smooth plain finish, making them easy to cut, fabricate, and install across a wide range of industrial sealing, lining, and protection applications.
- Oil and fuel system gaskets and seals
- Hydraulic system sealing and hose lining
- Chemical plant pipe wrapping and floor protection
- Anti-vibration pads and motor base insulation
- Tank base lining and sump pit protection (Nitri65 Max)
- Workshop underlays and toolbox liners (Nitri65 Lite, X)
Different types of Duratuf Nitrile Rubber Sheets: Product variants

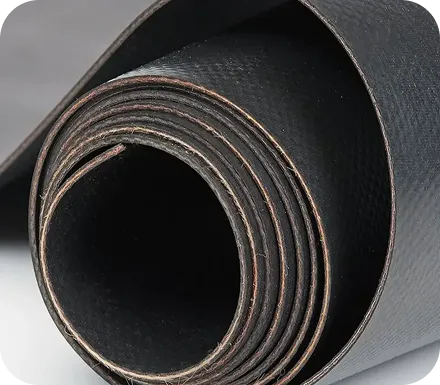

Nitri65 Max
Used in demanding industries for its superior resistance against corrosive chemicals and oils …
Nitri65 Pro
Composed of 50% nbr rubber, it is renowned in the industry for its excellent durability …
Nitri65 X
Moderate resistance against oils, fuels, and diluted acids and alkalis …
Nitri65 Lite
Ideal for light-duty applications with basic resistance against mild chemicals, oils, and greases …
Technical Specification
| Product Name | Color | Tensile Strength (MPa) (Min) | Elongation at Break | Hardness | Specific Gravity | Working Temperature (°C) | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Testing Standard | Specified Value | Testing Standard | Specified Value | Testing Standard | Specified Value | Testing Standard | Specified Value | |||
| Nitri65 Lite – Black | Black | ASTM D412 | 4.0 MPa (Min) | ASTM D412 | 200% | ASTM D2240 | 65 ± 5° Shore A | ASTM D297 | 1.45 ± 0.05 | -10 to +60 |
| Nitri65 X – Black | Black | ASTM D412 | 5.0 MPa (Min) | ASTM D412 | 250% | ASTM D2240 | 65 ± 5° Shore A | ASTM D297 | 1.45 ± 0.05 | -10 to +70 |
| Nitri65 Pro – Black | Black | ASTM D412 | 5.0 MPa (Min) | ASTM D412 | 250% | ASTM D2240 | 65 ± 5° Shore A | ASTM D297 | 1.40 ± 0.05 | -20 to +90 |
| Nitri65 Max – Black | Black | ASTM D412 | 10.0 MPa (Min) | ASTM D412 | 300% | ASTM D2240 | 65 ± 5° Shore A | ASTM D297 | 1.30 ± 0.05 | -30 to +110 |
How Do We Ensure Certified Quality in our Nitrile Sheet?
Polymer Content Analysis
NBR polymer concentration is verified per batch to ensure each grade, Lite through Max, meets its specified acrylonitrile content and chemical resistance profile
Oil Immersion Testing
Samples are immersed in ASTM reference oils and industrial fuels for approximately 70 hours and tested for volume swell and hardness change before release
Mechanical Stress
Tensile strength and elongation at break are tested to ASTM D412 using calibrated universal testing machines. Every batch must meet specified minimums before dispatch
Precise Dimension
Sheet thickness is monitored digitally across the roll width to maintain tolerance and ensure consistent fabrication and installation performance
Industrial Applications of Duratuf Nitrile Rubber Sheets

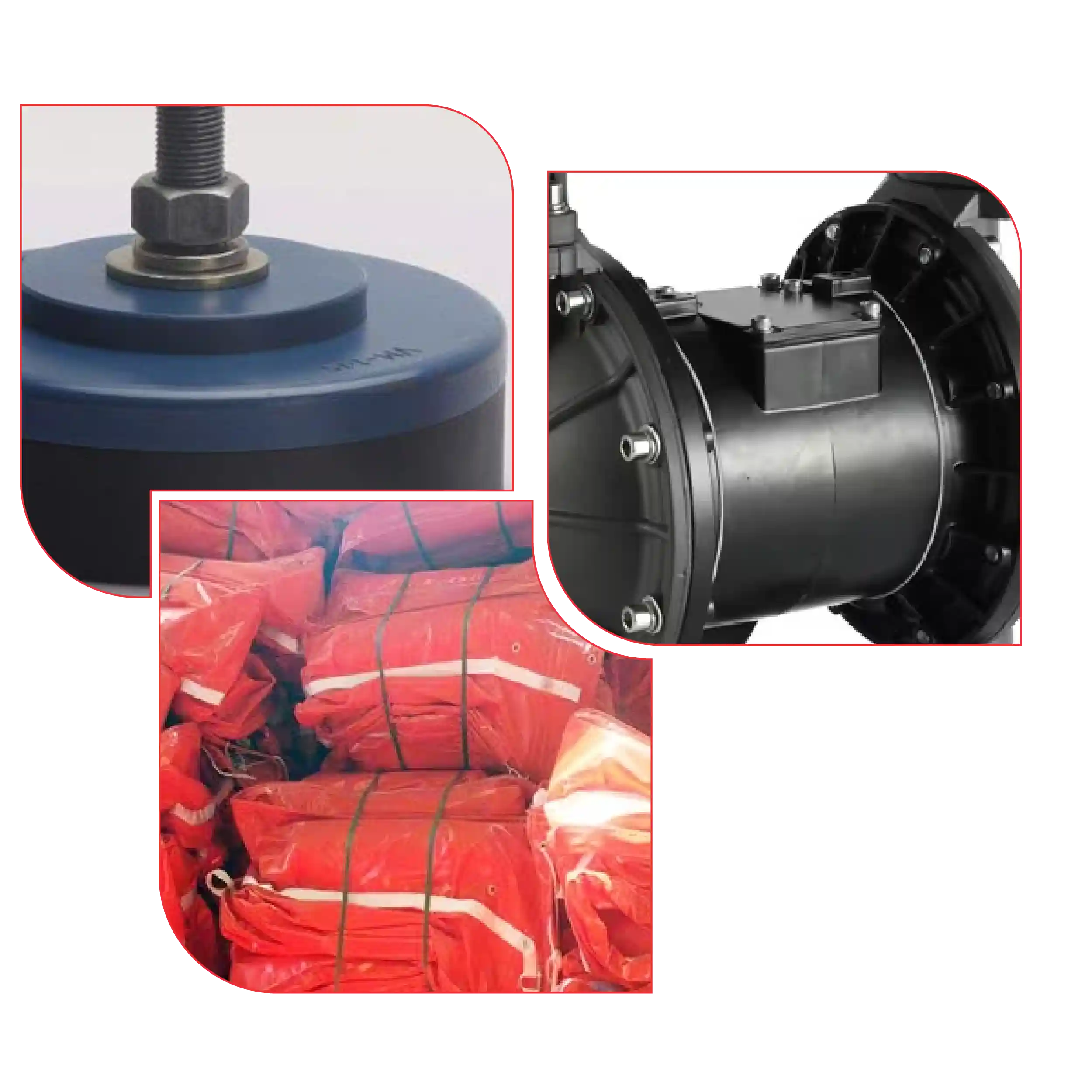

- Gasketing & Sealing (Light to Heavy Duty): From basic gaskets in workshops to fuel system and explosion-proof seals, the sheets serve diverse sealing needs, resisting oil, fuel, and pressure in both general and critical applications.
- Padding, Vibration & Insulation: Used as anti-vibration pads, engine bay insulation, and shock-absorbing inserts under motors or in machinery setups to reduce noise, wear, and movement.

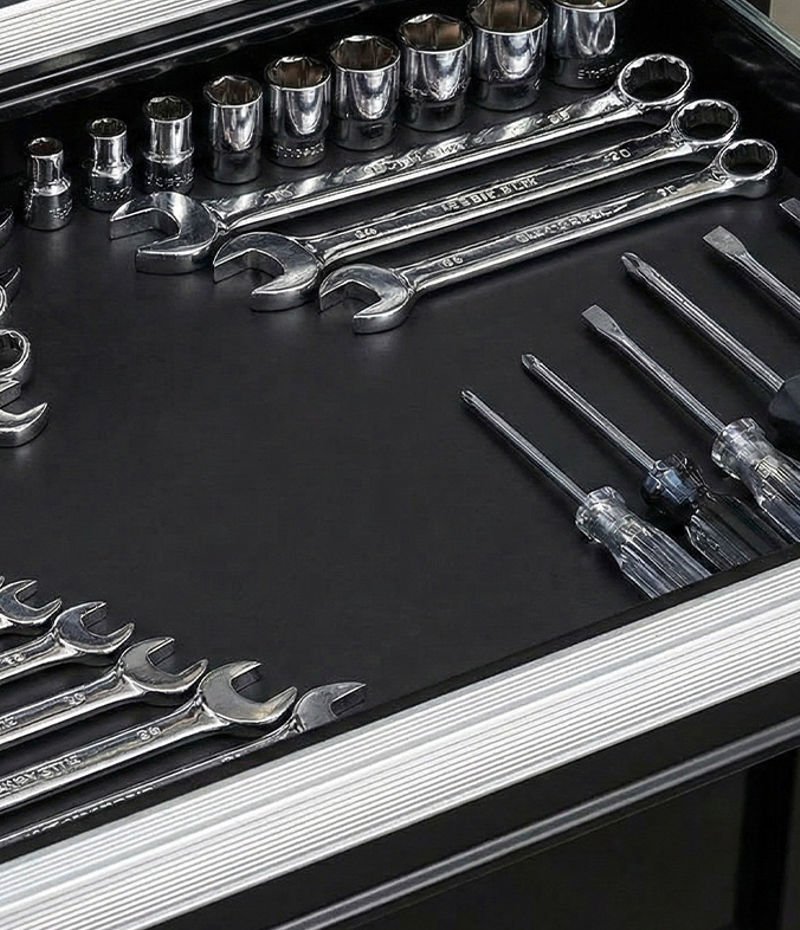

- Protective Liners & Flooring: Ideal for toolbox liners, garage underlays, and store flooring, offering a clean, oil-resistant surface in areas with moderate to high foot traffic and mechanical activity.
- Industrial Safety & Surface Protection: Deployed as temporary mats, pipe wraps, splash barriers, and containment base sheets, these prevent damage from oil, grease, or chemical spills in industrial environments.
- Specialty & High-Performance Use: Engineered for fuel tank lining, hydraulic insulation, oil rig mounts, and chemical zone flooring, delivering long-term reliability in the most demanding oil & gas and manufacturing settings.
Key Features of Duratuf Nitrile Rubber Sheets
Some of the features of Duratuf Nitrile sheeting are:
REACH SVHC compliant and RoHS 3 certified. Free from restricted substances, supporting export compliance for EU, Middle East, and Americas markets
Four grades from 10% to 100% NBR polymer content, covering economy, commercial, industrial, and heavy-duty specifications under a single consistent product family.
Tested for compression set performance, the ability to recover shape after sustained load. Critical for gasket and seal applications where long-term leak prevention is required
Top and bottom plain finish on both sides, consistent surface for fabrication, die-cutting, and adhesive bonding. Standard thickness range: 2mm to 12mm
When you buy Duratuf rubber sheets, you invest in productivity and performance equally.
Why Procurement Teams Choose Duratuf for NBR Rubber Sheet
ASTM Tested Every Batch
Tensile strength, elongation, hardness, and specific gravity tested per ASTM D412, D2240, and D297. Test reports available on request
Grade-Matched Performance
Four NBR grades matched to application intensity, so you pay for the performance you need, not more
Safety Compliance
ISO 9001:2015, ISO 45001:2018 management systems. REACH SVHC, RoHS 3, and CE certified, supporting global procurement compliance
Superior Bonding
Smooth surface finish engineered for high-energy surface bonding
Customer testimonials and success stories
Take a look at what our customers think and say about us
I must say that Duratuf Products provided me EPDM rubber sheets of top quality. The sheets delivered by you guys are perfect for applying in my workplace’s industrial tanks! The order was delivered to us on time so a big thanks to you people.
Omar Hassan
On-time delivery: Thank you Duratuf for the EPDM rubber sheets of top quality. The sheets delivered by you guys are best for applying in my workplace’s industrial tanks! The order was delivered to us on time so a big thanks to the sales and support team.
Chris Taylor
I’ve long sought a dependable solution for our sealing applications. Thanks to your Viton Rubber Sheets, our search is finally over. These sheets have revolutionized our sealing processes, offering unparalleled resistance to extreme temperatures, chemicals, and pressure.
Sakshi B
The Nitrile Rubber Sheets exhibit exceptional resistance to oils, fuels, and abrasion, making them ideal for our demanding applications in the automotive sector. Very happy with customer services.
Rajiv Barua
As the proprietor of a manufacturing unit in Kolkata, India, I’ve relied on Neoprene Rubber Sheets from Duratuf to meet our demanding industrial requirements. The Neoprene material’s resilience against abrasion, weathering, and oil has significantly enhanced the durability of our products.
Anita Singh
As a steel fabrication company based in Mumbai, India, maintaining the integrity of our equipment is essential. These rubber sheets have significantly enhanced the efficiency and safety of our blasting processes.
Vikram Singh
Living in Chennai, India, I’ve struggled to find a reliable solution for my industrial needs until I discovered Silicone Rubber Sheets from Duratuf. The quality of the silicone is impeccable, offering unmatched resistance to extreme temperatures and chemicals, crucial for our diverse applications.
Rajesh Kumar
After placing my first order, I was thoroughly impressed with Duratuf’s easy ordering process and attention to the customer’s needs. The insertion rubber sheet provided to us has surpassed my expectations, proving to be an essential component in our production line.
Steven Miller
I run a small manufacturing unit specializing in inflatable products. We recently switched to Hypalon rubber sheets supplied by Duratuf for our production line, and the difference has been remarkable.
Sarah Johnson
As a customer based in London, I’ve been thoroughly impressed by the Natural Rubber Sheet offered by Duratuf. Its eco-friendly composition aligns perfectly with my values.
R. Patel
Being in the heart of monsoon-prone Mumbai, finding a reliable waterproofing solution was paramount for our construction project. We chose the EPDM Rubber sheets, and it has exceeded our expectations. Thanks to this innovative product, our investment is protected for years to come. Highly recommend it to fellow developers!
Anastasia Ivanova
I must say that Duratuf Products provided me EPDM rubber sheets of top quality. The sheets delivered by you guys are perfect for applying in my workplace’s industrial tanks! The order was delivered to us on time so a big thanks to you people.
Omar Hassan
I recently purchased Butyl Rubber Sheets for a project, and I must say, I am thoroughly impressed with their quality and performance.
João Pereira
The Abrasion Resistant Rubber Sheet exceeded our expectations, providing exceptional protection against wear and tear.
Diego Martinez
The General Purpose Rubber Sheet is a game-changer for us. It seals effectively, withstands extreme conditions, and saves time and resources. Highly recommended for reliable sealing and insulation
Oliver Smith
Frequently Asked Questions: Nitrile Rubber Sheets
Is nitrile rubber sheet resistant to oil and fuel?
Yes, the Nitrile rubber sheet is resistant to Petrol, diesel, hydraulic fluid, and grease.
What thicknesses are available in nitrile rubber sheets?
The standard thicknesses of Duratuf Nitrile rubber sheets are 2, 3, 5, 6, 8, 10, and 12 mm. They come in 1.2 m width and 10 m length. However, we offer customizations.
Can nitrile rubber sheets withstand chemicals?
Yes, Nitrile rubber sheet can withstand selective chemicals.
What is the temperature range of nitrile rubber sheets?
Duratuf Nitrile rubber range performs well for temperatures from -10°C to +110°C.
Are nitrile rubber sheets suitable for outdoor use?
No, Nitrile rubber sheets are best for indoor use.
Are nitrile rubber sheets food-grade?
No, industrial rubber sheets are not food grade.
How do I choose the right nitrile rubber sheet for my application?
You should choose Nitrile rubber sheets as per your working conditions and applications. If you need help, we are just a call away!
