Hypalon (CSM) Rubber Sheet
Specified where exposure to oxidizing acids, UV radiation, and ozone occur simultaneously, conditions that eliminate EPDM, neoprene, and natural rubber from consideration. Chosen by chemical plant engineers, marine fabricators, and infrastructure contractors in 65+ countries.
What is a Hypalon (CSM / Chlorosulfonated) Rubber Sheet?
Hypalon is the industrial trade name for CSM, Chlorosulfonated Polyethylene, a synthetic elastomer originally developed and registered by DuPont. The technical polymer designation is CSM under ASTM D1418. It is manufactured for environments where ozone exposure, UV radiation, & chemical aggression occur in combination: conditions that degrade EPDM, neoprene, & standard rubber compounds within months.
The chlorosulfonyl groups in the polymer backbone give Hypalon rubber its defining property: resistance to oxidizing acids, including nitric acid and sulfuric acid, at concentrations where most elastomers swell and lose tensile strength. Combined with near-complete UV and ozone immunity, this makes Hypalon the specification standard for outdoor chemical containment, marine lining, flue gas systems, etc.
Duratuf Hypalon sheets are supplied as 100% CSM compound. No blended or diluted formulations. Operating range: -30°C to +130°C, with smooth plain finish on both sides for sealing and lining applications.
- Chemical tank and vessel lining in acid-handling plants
- Flue gas duct lining and exhaust system components
- Outdoor expansion joints and weatherproof sealing
- Marine deck covering and hull lining applications
Types of Chlorosulfonated (Hypalon) Rubber Sheets: Duratuf's Grade
Hypa60 Pro
Has exceptional abrasion and moisture resistance, which makes it ideal for applications in extreme environments.
Technical Specification
| Product Name | Color | Tensile Strength | Elongation at Break | Hardness | Specific Gravity | Working Temperature (°C) | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Testing Standard | Specified Value | Testing Standard | Specified Value | Testing Standard | Specified Value | Testing Standard | Specified Value | |||
| Hypa60 Pro – Black | Black | ASTM D412 | 10.0 MPa (Min) | ASTM D412 | 350% | ASTM D2240 | 60 ± 5° Shore A | ASTM D297 | 1.30 ± 0.05 | -30 to +130 |
How do we ensure certified quality in our Butyl Rubber Sheets?
100% CSM Polymer
Every batch compounded at 100% chlorosulfonated polyethylene — no blended grades. Polymer purity verified before production release.
Oxidizing Acid Immersion Test
Sheets tested in nitric and sulfuric acid solutions to confirm no swelling, no tensile loss, and no surface degradation under sustained chemical contact.
UV & Ozone Exposure Testing
Accelerated UV and ozone chamber testing confirms no surface cracking, colour change, or hardness shift — critical for outdoor and marine applications.
Density & Dimension Verification
Specific gravity confirmed at 1.30 ± tolerance and sheet dimensions verified with precision instruments on every production batch before dispatch.

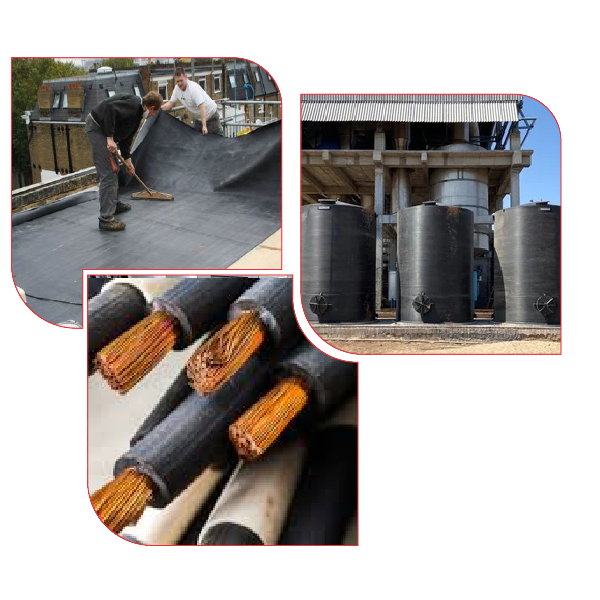

Major Industrial Applications (uses) of Duratuf Chlorosulfonated Rubber Sheets
- UV & Ozone-Resistant Roofing Solutions: Used as roofing membranes and weather barriers in outdoor environments exposed to harsh sunlight and ozone.
- Chemical-Resistant Linings & Covers: Ideal for tank linings, duct covers, and splash curtains in corrosive or acid-handling zones.
- Sealing in HVAC & Outdoor Equipment: Applied in gaskets and seals for HVAC units, exhaust systems, and external machinery exposed to heat, chemicals, or weather.
- Marine & Floating Structure Protection: Serves as protective liners and covers in marine applications, resisting moisture, salt spray, and surface wear.
- Flexible Expansion & Joint Sealing: Used in bellows, expansion joints, and movement zones, ensuring long-term flexibility and chemical resistance.
Key Features of Duratuf Chlorosulfonated (Hypalon Rubber) Sheets
Duratuf Hypalon sheets are designed to deliver performance in harsh environments, where there is constant chemical exposure. Some features of our Hypalon rubber sheets are:
Resists nitric acid, sulfuric acid, and chromic acid at concentrations that destroy EPDM, neoprene, and nitrile, the primary specification driver for chemical containment duty.
The CSM polymer backbone is inherently resistant to UV radiation and ozone attack. No surface cracking or hardness shift under continuous outdoor exposure unlike NR, SBR, and neoprene.
Maintains sealing integrity and mechanical properties across a wide thermal range, suitable for both outdoor cold-climate service and moderate industrial heat duty.
Free from restricted and hazardous substances. Batch certificates and compliance documentation available with every shipment for regulated procurement requirements.
When you buy Duratuf rubber sheets, you invest in productivity and performance equally.
Why Duratuf for Chlorosulfonated or Hypalon rubber sheeting?
Verified Batch Quality
Every batch tested for hardness, tensile strength, elongation, and specific gravity against specified values. Test reports available on request.
Globally Compliant
REACH and RoHS certified. Supplied to chemical plants, marine fabricators, and defense contractors across 65+ countries under consistent batch standards.
Batch Transparency
Traceable documentation, material certificates, and test reports with every shipment. No undocumented compound or grade substitution.
Specification-Grade Only
100% CSM compound, not blended formulations. If your application requires full Hypalon performance, this is the correct supply source.
Customer testimonials and success stories
Take a look at what our customers think and say about us
I must say that Duratuf Products provided me EPDM rubber sheets of top quality. The sheets delivered by you guys are perfect for applying in my workplace’s industrial tanks! The order was delivered to us on time so a big thanks to you people.
Omar Hassan
On-time delivery: Thank you Duratuf for the EPDM rubber sheets of top quality. The sheets delivered by you guys are best for applying in my workplace’s industrial tanks! The order was delivered to us on time so a big thanks to the sales and support team.
Chris Taylor
I’ve long sought a dependable solution for our sealing applications. Thanks to your Viton Rubber Sheets, our search is finally over. These sheets have revolutionized our sealing processes, offering unparalleled resistance to extreme temperatures, chemicals, and pressure.
Sakshi B
The Nitrile Rubber Sheets exhibit exceptional resistance to oils, fuels, and abrasion, making them ideal for our demanding applications in the automotive sector. Very happy with customer services.
Rajiv Barua
As the proprietor of a manufacturing unit in Kolkata, India, I’ve relied on Neoprene Rubber Sheets from Duratuf to meet our demanding industrial requirements. The Neoprene material’s resilience against abrasion, weathering, and oil has significantly enhanced the durability of our products.
Anita Singh
As a steel fabrication company based in Mumbai, India, maintaining the integrity of our equipment is essential. These rubber sheets have significantly enhanced the efficiency and safety of our blasting processes.
Vikram Singh
Living in Chennai, India, I’ve struggled to find a reliable solution for my industrial needs until I discovered Silicone Rubber Sheets from Duratuf. The quality of the silicone is impeccable, offering unmatched resistance to extreme temperatures and chemicals, crucial for our diverse applications.
Rajesh Kumar
After placing my first order, I was thoroughly impressed with Duratuf’s easy ordering process and attention to the customer’s needs. The insertion rubber sheet provided to us has surpassed my expectations, proving to be an essential component in our production line.
Steven Miller
I run a small manufacturing unit specializing in inflatable products. We recently switched to Hypalon rubber sheets supplied by Duratuf for our production line, and the difference has been remarkable.
Sarah Johnson
As a customer based in London, I’ve been thoroughly impressed by the Natural Rubber Sheet offered by Duratuf. Its eco-friendly composition aligns perfectly with my values.
R. Patel
Being in the heart of monsoon-prone Mumbai, finding a reliable waterproofing solution was paramount for our construction project. We chose the EPDM Rubber sheets, and it has exceeded our expectations. Thanks to this innovative product, our investment is protected for years to come. Highly recommend it to fellow developers!
Anastasia Ivanova
I must say that Duratuf Products provided me EPDM rubber sheets of top quality. The sheets delivered by you guys are perfect for applying in my workplace’s industrial tanks! The order was delivered to us on time so a big thanks to you people.
Omar Hassan
I recently purchased Butyl Rubber Sheets for a project, and I must say, I am thoroughly impressed with their quality and performance.
João Pereira
The Abrasion Resistant Rubber Sheet exceeded our expectations, providing exceptional protection against wear and tear.
Diego Martinez
The General Purpose Rubber Sheet is a game-changer for us. It seals effectively, withstands extreme conditions, and saves time and resources. Highly recommended for reliable sealing and insulation
Oliver Smith
Frequently Asked Questions: Chlorosulfonated (Hypalon rubber) Sheets
What are the key properties of Hypalon rubber sheets?
Hypalon rubber sheets have these features:
- Resistance to ozone and weathering
- High tolerance to dilute acids and alkaline solutions
- Thermal stability
- Smooth surface
- Flexibility and structural integrity
- Resistant to moderate oil exposure
- Non-stick surface
What is the Hypalon rubber temperature range?
Duratuf Hypalon rubber temperature range is between -30°C and +130 °C
Is Hypalon rubber suitable for outdoor and marine applications?
Yes, Duratuf Hypalon rubber is suitable for both outdoor and marine applications. Connect with us for more information regarding the same.
What thicknesses and sizes are available in Hypalon rubber sheets?
The standard thicknesses for our Hypalon sheets are 2, 3, 5, 6, 8, 10, and 12 mm. Their standard width is 1.2 m and length is 10 m. However, we offer product customizations. Connect with us if you are looking for customizations.
How does Hypalon rubber differ from EPDM or Neoprene rubber?
Yes, Hypalon rubber has a different composition and features than EPDM or Neoprene rubber. Are you curious to know? Book a consultation call with our experts.
Is Hypalon rubber sheet resistant to chemicals and acids?
Yes, Duratuf Chlorosulfonated or Hypalon rubber is resistant to strong chemicals and acids.
Are Hypalon rubber sheets suitable for roofing and lining applications?
Yes, they are, but they might not be cost-effective for the purpose. You can choose EPDM rubber sheets for such applications.
How long do Hypalon rubber sheets last in industrial applications?
The longevity mostly depends on the applications and work environment. Nevertheless, Duratuf Chlorosulfonated (Hypalon) rubber sheets can last up to 2-3 years under optimum working and storage conditions. For more details, call us.
