High-Quality & Longer Lasting Impact Bar

DuraIBar45 Pro

DuraIBar45 Pro-Color comes in different vibrant shades such as blue, green, and red. Along with their vibrant colors, they have a perfect balance of shock absorption, vibration dampening, and abrasion resistance properties.
Being made of an NR/SBR blend, this impact bar is engineered to deal with moderate to heavy loads. It has a lower value of hardness and is more flexible. However, it efficiently safeguards the conveyor belts from wearing out or tearing while dealing with loads.
With its variety of colors, they ease the installation and inspection process. It offers superior performance even during transferring and dropping of materials.

DuraIBar45 Pro Impact Bar: Technical Specifications

Item Name Grade Polymer Polymer Content Color Tensile Strength Elongation at Break Specific Gravity Hardness Abrasion Surface Finish Recommended Dimension Recommended Use Temp. Range(°C)
DuraIBar45 Pro – Colour PRO NR/SBR Red/Blue/Green 13 MPa (min) 450% 1.20 ± 0.05 45 ± 5° Shore A 120 mm³ (max) 50/75 mm X 100 mm X 1200 mm

50/75 mm X 100 mm X 1220 mm

50/75 mm X 100 mm X 1300 mm

50/75 mm X 100 mm X 1400 mm

50/75 mm X 100 mm X 1500 mm

50/75 mm X 100 mm X 1524 mm
-30° to + 70° C

Features of DuraIBar45 Pro Impact Bar and Benefits to the Users

Gentle Cushioning

Soft surface reduces belt stress at loading points.

Medium-Duty Strength

Durable NR/SBR blend suits lighter material loads.

Flexible Fit

Adapts smoothly to curved or uneven conveyor surfaces.

Stable Grip

Maintains firm belt contact with low friction drag.

Quick Setup

Allows fast cutting and onsite customization.

Color Guidance

Multiple shades support clear zone identification.

Major Applications of DuraIBar45 Pro Impact Bar

  • Mining conveyors handling coarse ores and stones
  • Steel and metal handling conveyors with repeated drops
  • Primary crusher discharge and screen feed chutes
  • Cement industry conveyors with rugged drop impact points
  • High-load coal and lignite conveyor sections
  • Foundries and mineral handling lines
  • Heavy-duty port and dockside loading conveyors

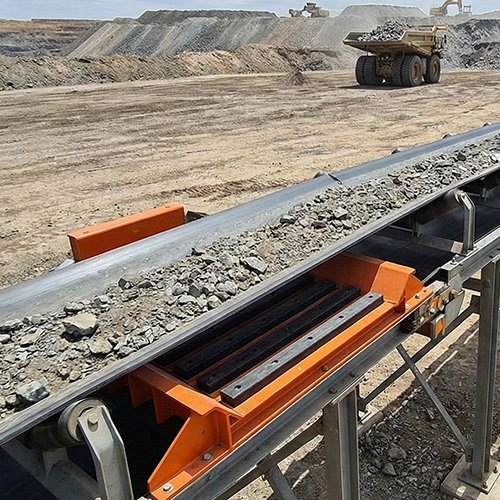

DuraIBar45 Pro-Color - Flexible Conveyor Impact Bar Application Image
