High-Quality & Longer Lasting Impact Bar

DuraLBar60 Pro

DuraLBar60 Pro – Black is ideal for rugged environments due to its remarkable properties. The “60” in its name indicates its hardness, which is 60 SHA. It has high tensile strength and hardness that ensure its superior performance in such environments. It is made of NR/SBR rubber blend reinforcements.

Its design allows it to withstand and support heavy loads while lifting and transporting in the industries. Besides, it has a great shock absorption property that is ideal for heavy-duty applications. It maintains structural integrity at the same time and offers a long service life.

The DuraLBar60 Pro ensures the reduction of fatigue in conveyor belts. Its performance ensures improved uptime in the industries.

DuraLBar60 Pro Impact Bar: Technical Specifications

Item Name Grade Polymer Polymer Content Color Tensile Strength Elongation at Break Specific Gravity Hardness Abrasion Surface Finish Recommended Dimension Recommended Use Temp. Range(°C)
DuraLBar60 Pro – Black PRO NR/SBR Black 18 MPa (min) 450% 1.20 ± 0.05 60 ± 5° Shore A 120 mm³ (max) 75 mm X 50 mm X 1500 mm
75 mm X 75 mm X 1500 mm
75 mm X 100 mm X 1500 mm
100 mm x 100 mm x 1600 mm
50 mm x 100 mm x 1500 mm
-30° to + 70° C

Features of DuraLBar60 Pro Impact Bar and Benefits to the Users

Heavy-Duty Support

NR/SBR blend withstands rugged, high-load operations.

Stable Lifting

Ensures consistent elevation of bulk materials efficiently.

Low Friction

Smooth movement helps reduce belt resistance and wear.

Shape Retention

Holds form under heat, stress, and continuous load.

Wear Concealment

Solid black finish hides dirt and abrasion.

Flow Stability

Improves material movement at critical transfer points.

Major Applications of DuraLBar60 Pro Impact Bar

  • Mining conveyors handling coarse ores and stones
  • Steel and metal handling conveyors with repeated drops
  • Primary crusher discharge and screen feed chutes
  • Cement industry conveyors with rugged drop impact points
  • High-load coal and lignite conveyor sections
  • Foundries and mineral handling lines
  • Heavy-duty port and dockside loading conveyors

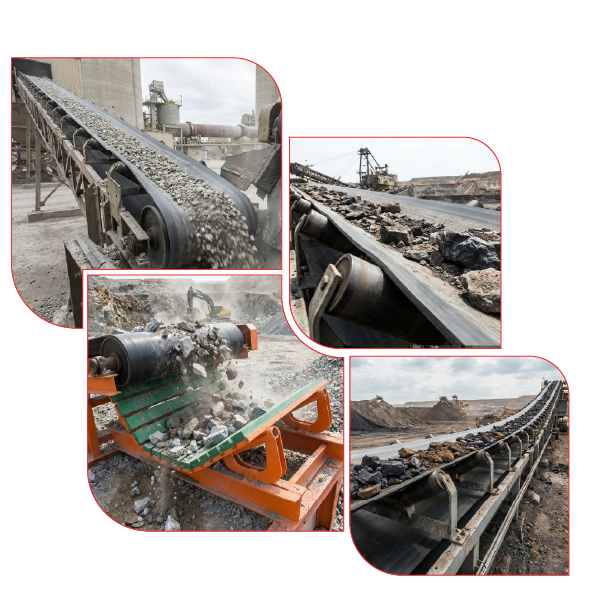

DuraLBar60 Pro - Heavy-Duty Black Impact Bar Application Image
