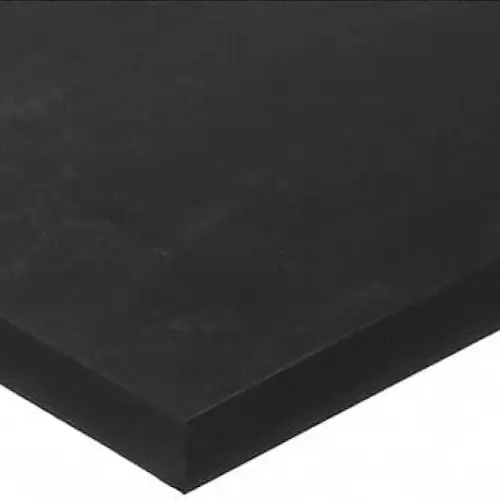

ButylShield60 Pro (Bromo): Butyl Rubber Sheet
What is ButylShield60 Pro (Bromo) ?
The ButylShield60 Pro – Bromo is made of brominated Butyl rubber. It is a premium specialty-grade Butyl rubber sheet resistant to enhanced chemical exposure. Each Butyl rubber roll has an optimum thermal stability compared to conventional rubber materials.
These sheets can withstand the effects of concentrated bases-acids, diluted bases-acids, oils, as well as high temperatures.
The bromination process of the ButylShield60 Pro – Bromo improves the rubber’s overall heat resistance, making it a preferred choice in industries such as petrochemical, automotive, and gas processing. The Butyl rubber sheet waterproofing seals and gaskets in these industries have to be durable.
Duratuf Bromobutyl rubber sheets are known for their low gas permeability and excellent weatherability in harsh conditions, also.
Technical Specifications of ButylShield60 Pro (Bromo) Rubber Sheet
| MEASURED PROPERTIES | TESTING STANDARD | SPECIFIED VALUES | OBSERVED VALUES |
|---|---|---|---|
| Tensile Strength | ASTM D412 | 8.0 MPa (min) | 8.7 MPa |
| Elongation at Break | ASTM D412 | 350% (min) | 367% |
| Hardness | ASTM D2240 | 60° ± 5° Shore A | 61° Shore A |
| Specific Gravity | ASTM D297 | 1.20 ± 0.05 | 1.22 |
| Working Temperature | – | -40°C to +130°C | Conforms |
| STANDARD DIMENSIONS & POLYMER COMPOSITION | |||
| Size | 2~12mm Thk. x 1.2m Wide x 10m Long | Finish Type | Top & Bottom Plain |
| Color | Black | Polymer | Bromo-Butyl – 100% |
Key Features and Properties of ButylShield60 Pro (Bromo)
Extreme Seal Integrity
Excellent for critical sealing in pharmaceutical, chemical, and sterile applications.
Low Gas Permeability
Prevents leakage of gases and moisture—used in pharma and HVAC systems.
Service Life Boost
These sheets withstand aging, weathering, and heat, reducing downtime and replacements.
Fast Curing Advantage
Bromo butyl allows quicker processing—saves time in manufacturing and lining jobs.
Lightweight Efficiency
Lower density of this product makes handling and installation faster, even on-site.
Cleanroom Compatibility
Non-staining and low outgassing—meets cleanroom and contamination-control standards.
Common Uses of ButylShield60 Pro (Bromo) rubber sheet
- Automotive engine bay sealing and insulation
- Chemical reactor and pump housing gaskets
- High-temperature fluid and gas transport lines
- Industrial brake and clutch lining systems
- Pharmaceutical plant barrier layers
- Flame-retardant applications in power plants
- Protective linings in acid and solvent tanks
Industry Certifications And Memberships
Why Duratuf for ButylShield60 Pro rubber sheet?
Timely Delivery
We make sure to deliver on time and enhance customer experience.
Order Tracking
Track your orders from our website to stay updated.
Scalable Supply
Supports increasing production volumes to match project needs.
Flexible Dispatch
Choose among CIF, FOB, Ex-works, CFR, and more delivery methods.
Our Client Testimonial / Success Stories
Omar Hassan
I must say that Duratuf Products provided me EPDM rubber sheets of top quality. The sheets delivered by you guys are perfect for applying in my workplace’s industrial tanks! The order was delivered to us on time so a big thanks to you people.
Chris Taylor
On-time delivery: Thank you Duratuf for the EPDM rubber sheets of top quality. The sheets delivered by you guys are best for applying in my workplace’s industrial tanks! The order was delivered to us on time so a big thanks to the sales and support team.
Sakshi B
I’ve long sought a dependable solution for our sealing applications. Thanks to your Viton Rubber Sheets, our search is finally over. These sheets have revolutionized our sealing processes, offering unparalleled resistance to extreme temperatures, chemicals, and pressure.
Rajiv Barua
The Nitrile Rubber Sheets exhibit exceptional resistance to oils, fuels, and abrasion, making them ideal for our demanding applications in the automotive sector. Very happy with customer services.
Anil Patel
Thanks to Duratuf’s reliable products, we’ve achieved higher operational efficiency and productivity levels. I wholeheartedly endorse their Skirt Board Rubber Sheets to fellow industry professionals seeking dependable performance.
Anita Singh
As the proprietor of a manufacturing unit in Kolkata, India, I’ve relied on Neoprene Rubber Sheets from Duratuf to meet our demanding industrial requirements. The Neoprene material’s resilience against abrasion, weathering, and oil has significantly enhanced the durability of our products.
Vikram Singh
As a steel fabrication company based in Mumbai, India, maintaining the integrity of our equipment is essential. These rubber sheets have significantly enhanced the efficiency and safety of our blasting processes.
Suresh Menon
The quality and reliability of your pulley lagging sheets are very good. They provide exceptional traction and wear resistance, even under the most demanding conditions. Our machinery’s performance has improved significantly since we started using these sheets, reducing downtime and maintenance costs.
Rajesh Kumar
Living in Chennai, India, I’ve struggled to find a reliable solution for my industrial needs until I discovered Silicone Rubber Sheets from Duratuf. The quality of the silicone is impeccable, offering unmatched resistance to extreme temperatures and chemicals, crucial for our diverse applications.
Steven Miller
After placing my first order, I was thoroughly impressed with Duratuf’s easy ordering process and attention to the customer’s needs. The insertion rubber sheet provided to us has surpassed my expectations, proving to be an essential component in our production line.
Sarah Johnson
I run a small manufacturing unit specializing in inflatable products. We recently switched to Hypalon rubber sheets supplied by Duratuf for our production line, and the difference has been remarkable.
R. Patel
As a customer based in London, I’ve been thoroughly impressed by the Natural Rubber Sheet offered by Duratuf. Its eco-friendly composition aligns perfectly with my values.
Anastasia Ivanova
Being in the heart of monsoon-prone Mumbai, finding a reliable waterproofing solution was paramount for our construction project. We chose the EPDM Rubber sheets, and it has exceeded our expectations. Thanks to this innovative product, our investment is protected for years to come. Highly recommend it to fellow developers!
Omar Hassan
I must say that Duratuf Products provided me EPDM rubber sheets of top quality. The sheets delivered by you guys are perfect for applying in my workplace’s industrial tanks! The order was delivered to us on time so a big thanks to you people.
João Pereira
I recently purchased Butyl Rubber Sheets for a project, and I must say, I am thoroughly impressed with their quality and performance.
Diego Martinez
The Abrasion Resistant Rubber Sheet exceeded our expectations, providing exceptional protection against wear and tear.
Oliver Smith
The General Purpose Rubber Sheet is a game-changer for us. It seals effectively, withstands extreme conditions, and saves time and resources. Highly recommended for reliable sealing and insulation
Bruce Budden
Insulated mat from Duratuf Products are not like other common commercial rubber mats. Easy to use, flexible, durable and the best quality at affordable price. I strongly recommended these to ensure the safety of workplace.
Ajinkya Vartak
We have purchased insulating mats from Duratuf because of their high quality. I appreciate Mr. Samsul Haque sir as he handled dispatch and product quality. Mr. Debapriyo Nandi, logistic Coordinator assists for transportation & excellent packing quality.
Suresh Babu Dasari
Quality of the products are reallly good and trustworthy. People of this organization are very professional and proactive.
Frequently Asked Questions
What is ButylShield60 Pro – Bromo rubber sheet used for?
ButylShield60 Pro – Bromo is used in chemical reactor gaskets, pump housing seals, automotive engine bay insulation, pharmaceutical barrier layers, flame-retardant applications, and protective linings for acid and solvent tanks where sealing integrity and chemical resistance are critical.
What material is ButylShield60 Pro – Bromo made from?
It is manufactured using 100% Bromobutyl (BIIR) rubber, engineered for low gas permeability, strong chemical resistance, and enhanced thermal stability.
What is the hardness of ButylShield60 Pro – Bromo?
The sheet has a nominal hardness of 60 ± 5 Shore A (ASTM D2240), providing balanced flexibility and structural strength for industrial sealing applications.
What are the tensile strength and elongation properties?
As per ASTM D412 testing, Tensile Strength: Minimum 8.0 MPa (Observed 8.7 MPa)and Elongation at Break: Minimum 350% (Observed 367%). These values ensure durability and flexibility under mechanical and thermal stress.
What is the operating temperature range?
ButylShield60 Pro – Bromo performs effectively within a wide temperature range of –40°C to +130°C, making it suitable for high-temperature industrial environments.
How resistant is ButylShield60 Pro – Bromo to chemicals?
The sheet provides: Excellent resistance to ozone, Excellent resistance to dilute and concentrated acids & bases. Excellent resistance to oils. Fair resistance to certain chemicals but Not recommended for solvents. This makes it ideal for chemically aggressive environments.
Does ButylShield60 Pro – Bromo provide gas and vapor barrier performance?
Yes. Bromobutyl rubber offers very low gas and vapor permeability, making it suitable for containment systems and pharmaceutical applications requiring leakage control.
