ASTM D178 Switchboard Mats - AmeriVolt
Meeting the American safety standards, the AmeriVolt ASTM D178 switchboard rubber matting ensures the electrical and physical safety of the workers. They adhere to the latest guidelines set by the American Society for Testing and Materials.
What are ASTM D178 Switchboard Mats?
Made of high-quality elastomer and compounds, the AmeriVolt ASTM D178 switchboard mats are dielectric and shockproof. They come in five classes, Class 0 to Class 4, with the working voltage ranges of 1 kV to 36 kV and a thickness range of 3.2 mm to 12.7 mm. The standard color of this matting range is black, but customized dimensions and colors are available.
Workers often have medical emergencies due to electrical accidents such as short circuits, arc flashes, current leakage, and others. Besides, physical accidents such as slipping and falling are also common in workplaces. A reliable insulating mat like the AmeriVolt protects and uplifts performance.
Technical Specification
| Properties | Type-I | Type-II |
|---|---|---|
| Material Composition | Made of elastomer or combination of elastomeric compound | |
| Tensile Strength (min) | 4.83 MPa (700psi) | |
| Elongation at Break (min) | 250% | |
| Ageing Properties at 70±1°C for 168 hours. | Tensile strength not less than 50% of original value | |
| Moisture Absorption (% increase) | 1.5% (max) | 3% (max) |
| Ozone Resistance (Type IIA) | N.A. | No visible effect |
| Flame Resistance (Type IIB) | N.A. | 12.7 mm height max after 30 secs. |
| Oil Resistance | N.A. | 4% max volume increase. |
| * Unless specified otherwise, ASTM D178 mats is supplied as per Type I grade. Type II grade (A-Ozone Resistance, B-Flame Resistance, C-Oil Resistance) with a combination of all three or individual properties is also availble on request. | ||
| Note: ± 0.8 – 1.2 mm on thickness & ± 13-25 mm on width (subject to mat’s class and width) | ||
Stock Roll Size
| Product Code (SKU) | Class | Type | Colour | Anti-Skid Design | Thickness | Width | Length | Weight/Roll |
|---|---|---|---|---|---|---|---|---|
| IM-ASTM-C0T1-BLAFT-3.2MM | 0 | 1 | Black | Top – Fine Ribbed Bottom – Textured | 3.2 mm (0.13 in) |
1 M | 10 M | 42 Kg(s) |
| IM-ASTM-C0T2-BLAFT-3.2MM | 2 | |||||||
| IM-ASTM-C1T1-BLAFT-4.8MM | 1 | 1 | 4.8 mm (0.19 in) |
68 Kg(s) | ||||
| IM-ASTM-C1T2-BLAFT-4.8MM | 2 | |||||||
| IM-ASTM-C2T1-BLAFT-6.4MM | 2 | 1 | 6.4 mm (0.25 in) |
92 Kg(s) | ||||
| IM-ASTM-C2T2-BLAFT-6.4MM | 2 | |||||||
| IM-ASTM-C3T1-BLAFT-9.5MM | 3 | 1 | 9.5 mm (0.38 in) |
140 Kg(s) | ||||
| IM-ASTM-C3T2-BLAFT-9.5MM | 2 | |||||||
| IM-ASTM-C4T1-BLAFT-12.7MM | 4 | 1 | 12.7 mm (0.50 in) |
190 Kg(s) | ||||
| IM-ASTM-C4T2-BLAFT-12.7MM | 2 |
Maximum Voltage
| Product Code | Class | Type | Max Use Voltage | AC Proof Voltage | Dielectric Voltage | Recommended Thickness |
|---|---|---|---|---|---|---|
| IM-ASTM-C0T1 | 0 | 1 | 1.0 kV | 5.0 kV | 6.0 kV | 3.2 mm (0.13 in) |
| IM-ASTM-C0T2 | 2 | |||||
| IM-ASTM-C1T1 | 1 | 1 | 7.5 kV | 10.0 kV | 20.0 kV | 4.8 mm (0.19 in) |
| IM-ASTM-C1T2 | 2 | |||||
| IM-ASTM-C2T1 | 2 | 1 | 17.0 kV | 20.0 kV | 30.0 kV | 6.4 mm (0.25 in) |
| IM-ASTM-C2T2 | 2 | |||||
| IM-ASTM-C3T1 | 3 | 1 | 26.5 kV | 30.0 kV | 40.0 kV | 9.5 mm (0.38 in) |
| IM-ASTM-C3T2 | 2 | |||||
| IM-ASTM-C4T1 | 4 | 1 | 36.0 kV | 40.0 kV | 50.0 kV | 12.7 mm (0.50 in) |
| IM-ASTM-C4T2 | 2 |
Customize Your Mat
| Customisation | Options |
|---|---|
| Width | Max. Width upto 1220 mm (48 in) |
| Length | Max Length upto 30 M (100 ft) for below 6.4 mm thickness & Max Length upto 15 M (50 ft) for above 6.4 mm thickness |
| Color | Dark Grey or any other colour subject to techno-commercial feasibility |
| Anti-skid Design | Also available in both side texture design in all classes & types |

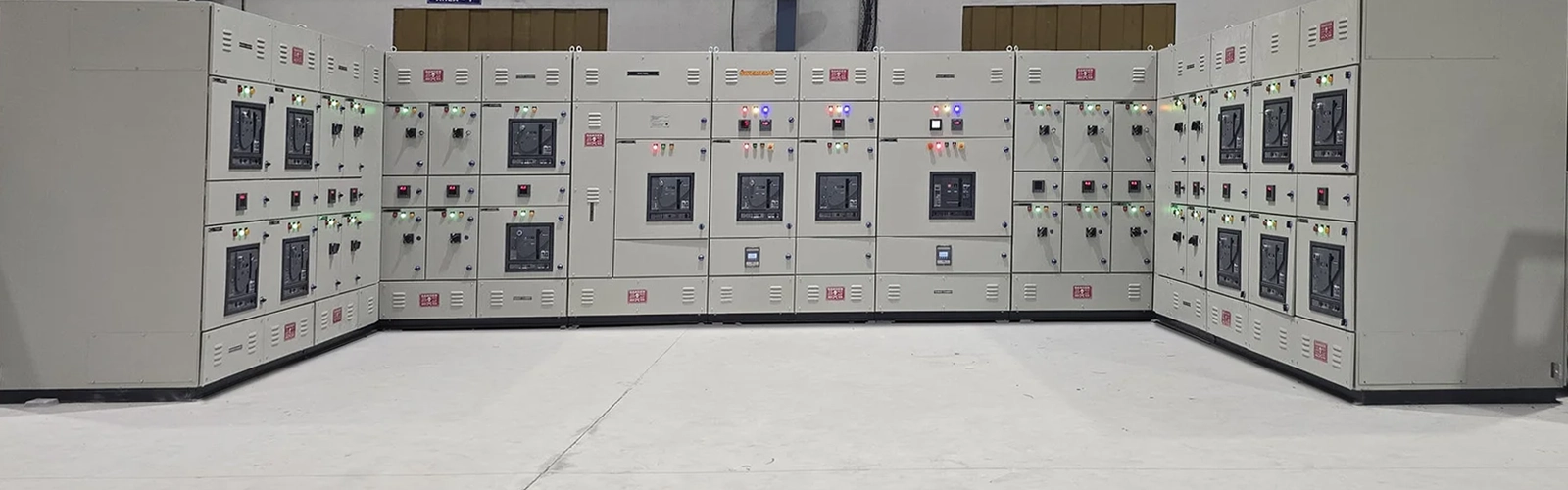

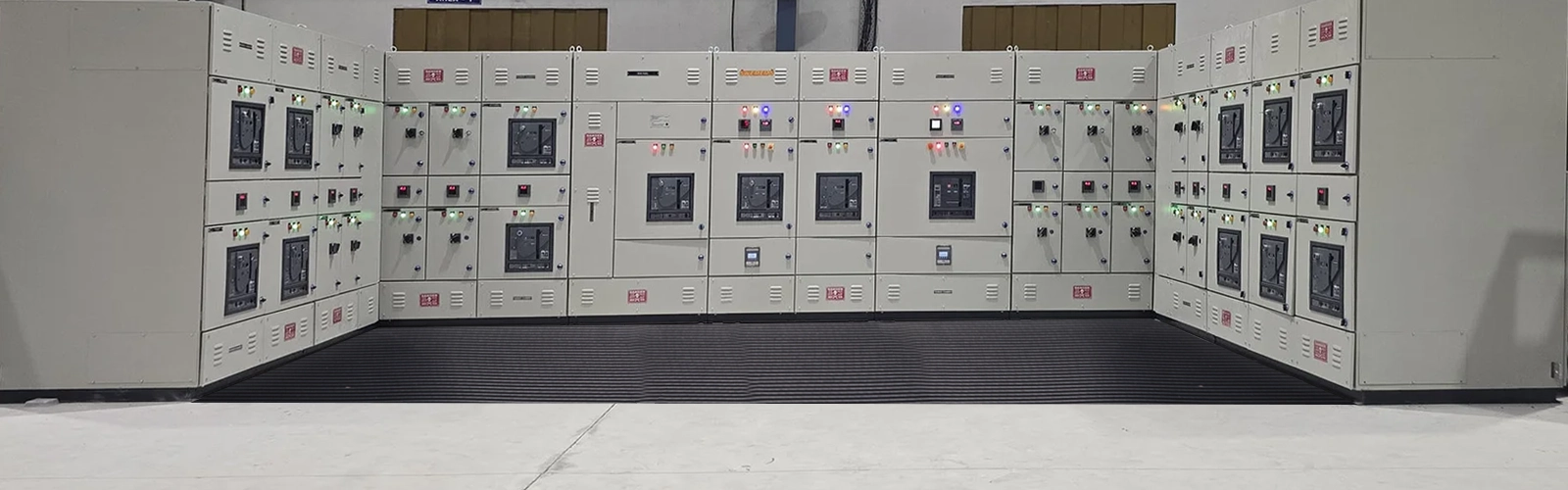

See the Difference Safety Makes
Best Uses of ASTM D178 Insulating Safety Mats
- Switchgear, control, and generator rooms
- Distribution boards
- Circuit breaker panels
- UPS and telecommunication rooms
- Transformer yards
- Cable trenches
- Busbar areas
- Battery storage racks and charging stations
- Circuit testing zones
- Maintenance depots
- Overhead equipment and signal equipment rooms
- Electrical and variable frequency drives (VFD) cabinets, etc.
Key Features and Properties ASTM D178 Switchboard Mats or Insulating Mats
REACH, ROHS, CE, ASTM and more certificates prove their compliance with the industrial safety standards.
Thickness ranging from 3.2 mm to 12.7 mm enhances the comfort of the workers standing for long hours and reducing their fatigue.
Ribbed surface texture makes it easy to clean and also reduces the chances of accidents like slipping and falling.
Type I ASTM mats for superior electrical resistance and Type II (ABC) for provide ozone, flame, and oil resistance also.
When you buy Duratuf Insulating Mats, you invest in productivity and performance equally.
Why Choose Duratuf AmeriVolt for Switchboard Matting
12 months Warranty
For less hassles and more productivity
Industry-compliance
For USA and North- American factories
Traceable Labels
Includes model code, batch number, printed voltage ratings
Reliable Logistics
Timely delivery with quick clearance
Customer testimonials and success stories
Take a look at what our customers think and say about us
Insulated mat from Duratuf Products are not like other common commercial rubber mats. Easy to use, flexible, durable and the best quality at affordable price. I strongly recommended these to ensure the safety of workplace.
Bruce Budden
We have purchased insulating mats from Duratuf because of their high quality. I appreciate Mr. Samsul Haque sir as he handled all the specifics, such as dispatch and product quality. Everything is flawless both before and after delivery. Mr. Debapriyo Nandi, logistic Coordinator assists for transportation & excellent packing quality. Further, we appreciate that maximum material has been delivered before the committed time.
Ajinkya Vartak
Quality of the products are reallly good and trustworthy. People of this organization are very professional and proactive.
Suresh Babu Dasari
Frequently Asked Questions: Duratuf Switchboard Mats - ASTM D178
What standard does AmeriVolt electrical insulating mat comply with?
The AmeriVolt switchboard mats comply with the latest ASTM D178 safety standard, which was formulated by the American Society for Testing and Materials.
What voltage ratings are available in AmeriVolt insulating mats?
Each class of the AmeriVolt ASTM D178 switchboard rubber matting is suitable up to a certain working voltage:
- Class 0: 1 kV
- Class 1: 7.5 kV
- Class 2: 17 kV
- Class 3: 26.5 kV
- Class 4: 36.0 kV
Are AmeriVolt ASTM D178 insulating mats slip resistant?
Yes, the AmeriVolt rubber mats for electrical panels are slip-resistant as they have a ribbed surface texture. They enhance the grip of the mats to the ground, increasing friction and reducing the chances of slipping.
Are AmeriVolt insulating mats flame retardant?
They have self-extinguishing properties and prevent the spread of fire during a fire outbreak.
How should ASTM D178 AmeriVolt insulating mats be tested and maintained?
You should conduct tests to check the electrical insulation properties and mechanical strength of your ASTM D178 AmeriVolt electric safety mats. Besides, regularly check if there are any signs of damage, keep them clean, and avoid subjecting them to sharp objects, excessive temperatures, harsh chemicals, and others.
What thickness and size options are available for AmeriVolt mats?
They are available in thicknesses of 3.2 mm (Class 0), 4.8 mm (Class 1), 6.4 mm (Class 2), 9.5 mm (Class 3), and 12.7 mm (Class 4). The standard size of these mats is 1 m x 10 m, and if you require other sizes, you can choose customization.
