Duratuf Electrical Insulating Rubber Mats – IEC 61111:2009
The Duratuf electrical insulating rubber mats IEC 61111 comply with the latest revisions of the International Electrotechnical Commission. They are manufactured with high-quality elastomer, free from any type of insertion as per the guideline. Furthermore, they are quality tested for di-electric strength, elongation at break, tensile strength, aging, and performance around water-heat-chemicals-UV-Ozone.

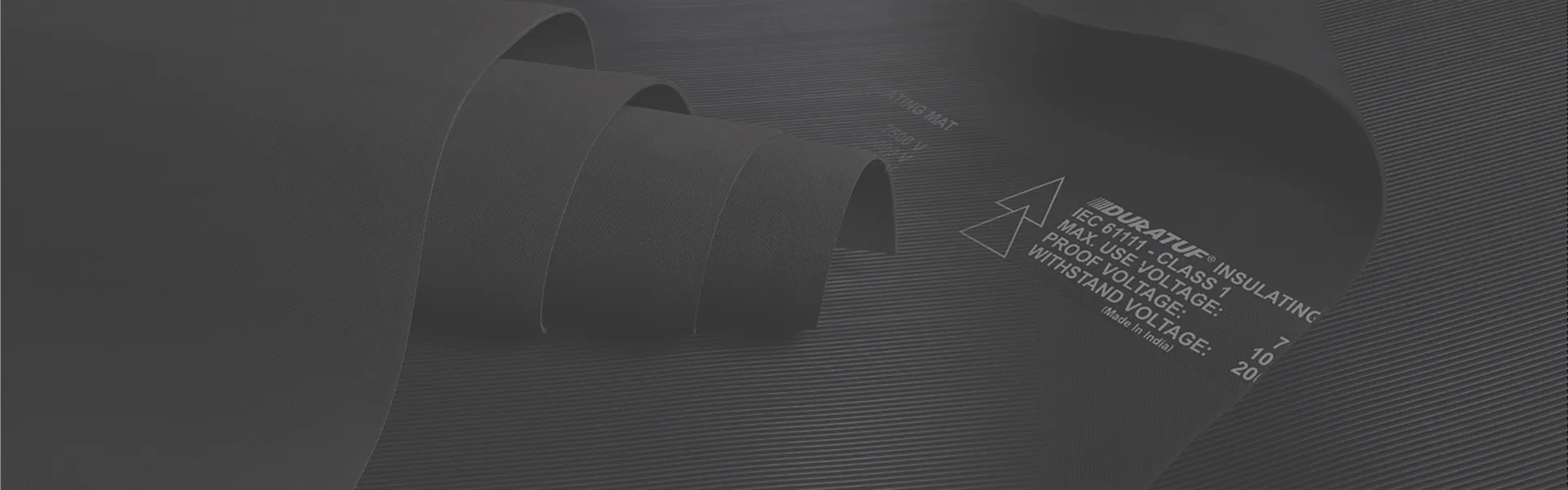

The Duratuf IEC 61111:2009 high-voltage insulating mats come in standard black color with color-coded product specification labels. You will get them in a fine-ribbed top and a textured anti-slip bottom design. The complete technical specifications are listed below:
Technical Specifications of the Duratuf Electrical Insulating Rubber Mats (IEC 61111:2009)
| Material Composition | Mechanical Puncture Resistance (min) | Slip Resistance (min) | Ageing Properties at 70±2°C for 168 hours | Flame Retardance | Low Temperature Test at – 25±3°C | Acid Resistance | Oil Resistance | Working Temperature | |
|---|---|---|---|---|---|---|---|---|---|
| Elastomer free from any insertion. Typically, a combination of natural rubber and other synthetic polymers. | 70 N | 50 N | Mechanical Puncture Resistance not less than 80% of original value | Does not catch fire | No visible tear, cracks or breaks | Mechanical Test Values not less than 75% of original value | Mechanical Test Values not less than 75% of original value | -25°C to 55°C | Note: ± 10% on thickness, ± 2% on length & width |
Stock Roll Size
| Product Code (SKU) | Class | Colour | Anti-Skid Design | Thickness | Width | Length | Weight/Roll |
|---|---|---|---|---|---|---|---|
| IM-IEC-C0-BLATT-2MM | 0 | Black | Top & Bottom – Textured | 2.0 mm | 1 M | 10 M | 32 Kg(s) |
| IM-IEC-C1-BLATT-2MM | 1 | Black | Top & Bottom – Textured | 2.0 mm | 1 M | 10 M | 32 Kg(s) |
| IM-IEC-C2-BLAFT-3MM | 2 | Black | Top – Fine Ribbed & Bottom – Textured | 3.0 mm | 1 M | 10 M | 40 Kg(s) |
| IM-IEC-C3-BLAFT-4MM | 3 | Black | Top – Fine Ribbed & Bottom – Textured | 4.0 mm | 1 M | 10 M | 56 Kg(s) |
| IM-IEC-C4-BLAFT-5MM | 4 | Black | Top – Fine Ribbed & Bottom – Textured | 5.0 mm | 1 M | 10 M | 72 Kg(s) |
Customize Your Mat
| Customisation | Options |
|---|---|
| Thickness | Thickness can be customised for different classes upto 14 mm as per customer’s requirement |
| Width | Max. width upto 1220 mm (4 ft) |
| Length | Max. length upto 15 m (50 ft) |
| Color | Dark Grey or any other colour subject to techno-commercial feasibility |
| Anti-skid Design | Also available in Top & Bottom side texture design in all classes |
Maximum Voltage
| Product Code | Class | Max Use Voltage | AC Proof Voltage | Withstand Voltage | Max Thickness Allowed | Recommended Thickness |
|---|---|---|---|---|---|---|
| IM-IEC-C0 | 0 | 1.0 kV | 5.0 kV | 10.0 kV | 6.0 mm | 2.0 mm |
| IM-IEC-C1 | 1 | 7.5 kV | 10.0 kV | 20.0 kV | 6.0 mm | 2.0 mm |
| IM-IEC-C2 | 2 | 17.0 kV | 20.0 kV | 30.0 kV | 8.0 mm | 3.0 mm |
| IM-IEC-C3 | 3 | 26.5 kV | 30.0 kV | 40.0 kV | 11.0 mm | 4.0 mm |
| IM-IEC-C4 | 4 | 36.0 kV | 40.0 kV | 50.0 kV | 14.0 mm | 5.0 mm |

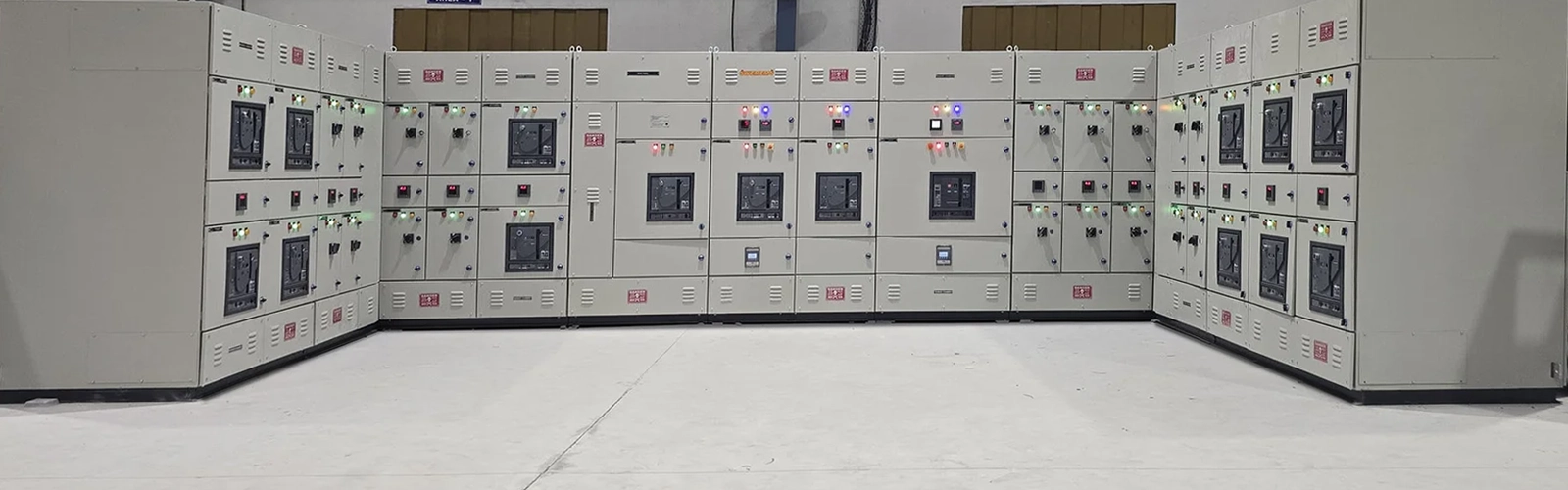

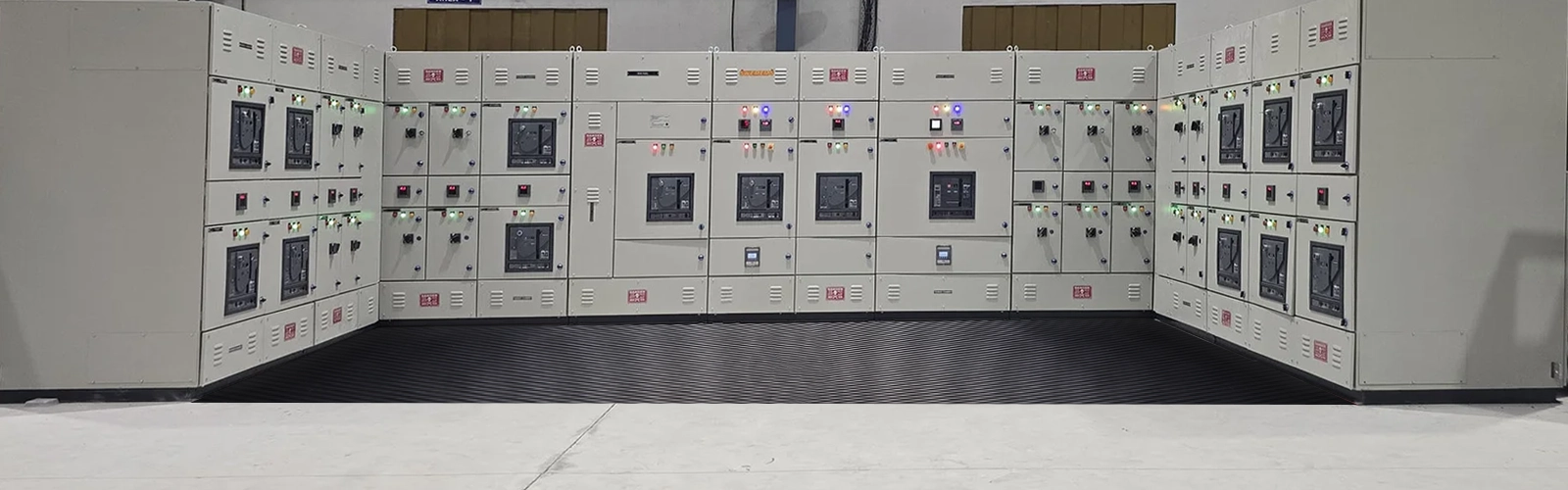

See the Difference Safety Makes
Major Applications
- Electrical Substations Substation Control Rooms, Switchyards, etc.
- Power Plants: Generator and Turbine Areas, Transformer Yards, etc.
- High Voltage Rooms: Testing Labs, Switchgear Room, Control Rooms, etc.
- Switchgear Rooms: Distribution Boards, Circuit Breaker Panels, etc.
- Control Panels: Electrical Cabinets, Variable Frequency Drives (VFD) Cabinets, etc.
- Data Centers: UPS Rooms, Telecommunication Rooms, Generator Rooms, etc.
- Battery Rooms: Battery Storage Racks, Battery Charging Stations, etc.
- Transformer Stations: Cable Trenches, Busbar Areas, Switching Areas, etc.
- Electrical Laboratories: Circuit Testing Zones, Equipment Testing Zones, etc.
- Railway Electrification Systems: Signal Equipment Rooms, Overhead Equipment (OHE) Maintenance Depots, etc.
Features and Benefits of Duratuf IEC 61111:2009 Electrical Rubber Mats
Authentic Products
Tested in internationally recognized labs, these electric mats ensure reliability and safety, providing peace of mind and compliance with global standards.
Premium Quality
Made from premium rubber compounds, our electric mats offer durability, sustainability, and high ROI.
Product Warranty
Get a 12-months warranty on our IEC 61111:2009 electric mats with an option to extend the warranty as per your business requirements.
Wide-Range of Industries
Being UV, Ozone, heat, moisture, oil, and mild chemical resistant, the IEC 61111 mats can be used in power, construction, chemical, mining, metal, and other industries.
Ready Stock
Up to 10,000 sq m ready stock of insulating mats are available across 7 global warehouses, guaranteeing quick availability and prompt delivery, reducing lead times.
Brand Reputation
Duratuf boasts a highly satisfied and loyal clientele base with a history of repeat orders.
Industry Certifications And Memberships
