Impact Bars
Duratuf impact bar range is designed to absorb and dissipate the energy from materials that fall on the conveyor belts from a height. Heavy materials, often in bulk quantities, can damage the conveyor system- not when Duratuf impact bars are in action.
Made from high quality NR/SBR rubber blend, Duratuf impact bars maintain their original structural integrity. We have I-bars, L-bars, and G-bars for different types of working conditions. The distinctive profile of our products provides stable support underneath, maintains bar-belt alignment, and is also used as edge support bars when needed.
Although Duratuf impact bars are engineered for conveyor systems used in core industries, they are highly recommended in mining, construction, and metal industries.
Impact Bars : Product Variants

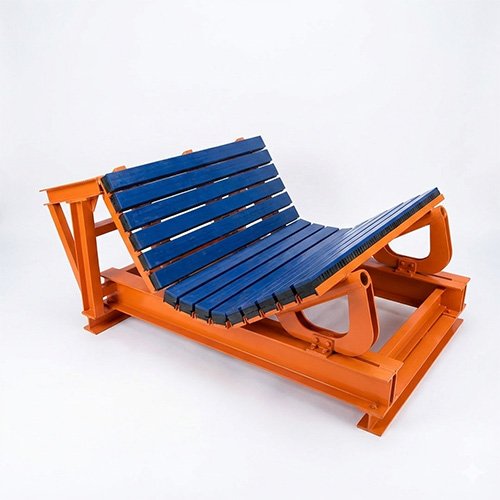

DuraGBar60 Pro
DuraGBar60Pro- Blue is made with NR/SBR rubber blend reinforcement. Its tensile strength, hardness, and elongation make it …

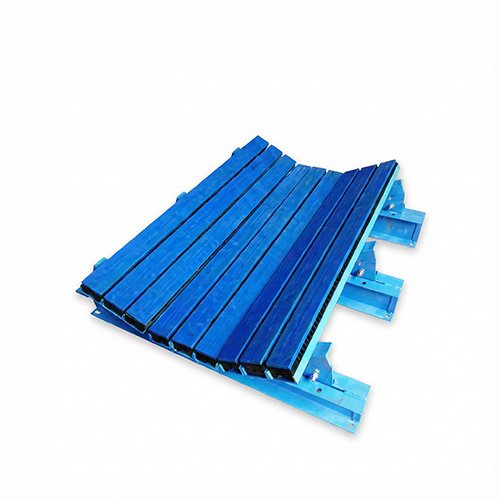

DuraLBar60 Pro
DuraLBar60 Pro – Black is ideal for rugged environments due to its remarkable properties. The “60” in its name indicates …

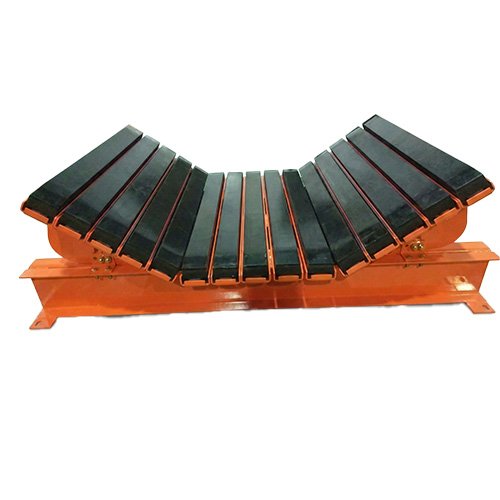

DuraIBar45 Pro
DuraIBar45 Pro-Color comes in different vibrant shades such as blue, green, and red. Along with their vibrant colors …

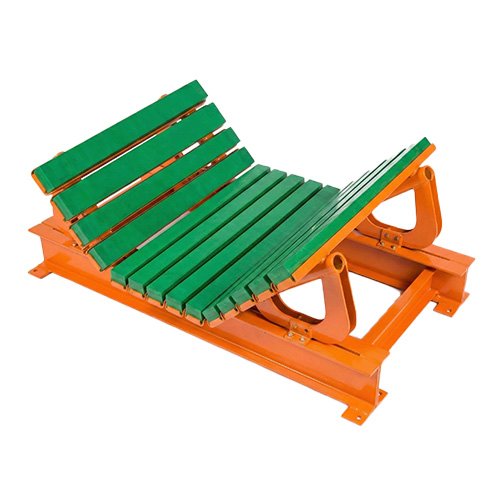

DuraIBar60 Pro
DuraIBar60 Pro- Color is made with an NR/SBR rubber compound. It is available in red, blue, and green colors which help …
Impact Bars : Comparison Between the Variants
| Item Name | Grade | Polymer | Polymer Content | Color | Tensile Strength | Elongation at Break | Specific Gravity | Hardness | Abrasion | Surface Finish | Recommended Dimension | Recommended Use Temp. Range(°C) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DuraIBar45 Pro – Colour | PRO | NR/SBR | – | Red/Blue/Green | 13 MPa (min) | 450% | 1.20 ± 0.05 | 45 ± 5° Shore A | 120 mm³ (max) | – |
50/75 mm X 100 mm X 1200 mm 50/75 mm X 100 mm X 1220 mm 50/75 mm X 100 mm X 1300 mm 50/75 mm X 100 mm X 1400 mm 50/75 mm X 100 mm X 1500 mm 50/75 mm X 100 mm X 1524 mm |
-30° to + 70° C |
| DuraIBar60 Pro – Colour | PRO | NR/SBR | – | Red/Blue/Green | 13 MPa (min) | 450% | 1.20 ± 0.05 | 60 ± 5° Shore A | 120 mm³ (max) | – |
50/75 mm X 100 mm X 1200 mm 50/75 mm X 100 mm X 1220 mm 50/75 mm X 100 mm X 1300 mm 50/75 mm X 100 mm X 1400 mm 50/75 mm X 100 mm X 1500 mm 50/75 mm X 100 mm X 1524 mm |
-30° to + 70° C |
| DuraLBar60 Pro – Black | PRO | NR/SBR | – | Black | 18 MPa (min) | 450% | 1.20 ± 0.05 | 60 ± 5° Shore A | 120 mm³ (max) | – |
75 mm X 50 mm X 1500 mm 75 mm X 75 mm X 1500 mm 75 mm X 100 mm X 1500 mm 100 mm x 100 mm x 1600 mm 50 mm x 100 mm x 1500 mm |
-30° to + 70° C |
| DuraGBar60 Pro – Blue | PRO | NR/SBR | – | Blue | 18 MPa (min) | 450% | 1.20 ± 0.05 | 60 ± 5° Shore A | 120 mm³ (max) | – |
33 mm X 200 mm X 1200 mm 33 mm X 250 mm X 1200 mm 33 mm X 300 mm X 1200 mm |
-30° to + 70° C |

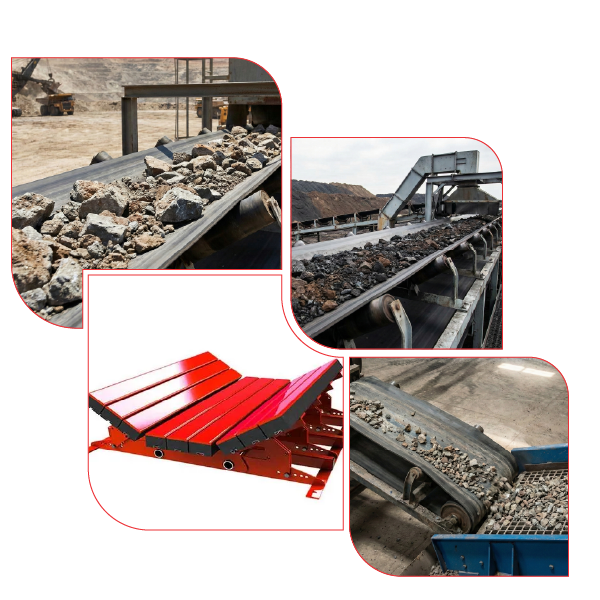

Major Application Areas of our Impact Bars
- Mining Impact – Handles heavy drop loads from coarse ores and stones in mining and quarry operations.
- Cement Duty – Performs reliably in cement, aggregate, and construction-plant conveyors exposed to rugged impact.
- Power Transfer – Supports coal and mineral movement in power plants where high-load impact is frequent.
- Metal Handling – Suitable for iron ore, bauxite, steel, and foundry conveyors with repeated heavy impact.
- Agro Flow – Works well in grain, fertilizer, and bulk agro-industry conveyors with moderate to high impact.
- Port Loading – Withstands harsh impact at port, dockside, and shipyard loading/unloading transfer points.
