IS 15652:2006 Certified Electrical Rubber Mats- Duratuf Xvolt
Duratuf Xvolt is an industrial-grade IS 15652:2006 certified electrical rubber mats manufactured to provide high-voltage electrical safety and long-term performances in industrial applications. XVolt electrical safety mats are available in three major categories like class A, class B & Class C with maximum use voltages up to 33 kV and dielectric strength up to 65 kV, making them suitable for a wide range of electrical installations across industries.
What is Duratuf XVolt Electrical Insulating Mat?
Duratuf XVolt is a high-performance IS 15652:2006 certified electrical rubber mat designed to provide a reliable insulation barrier between electrical equipment and personnel working in high-voltage areas. It is manufactured using premium-grade elastomers to ensure superior electrical resistance, mechanical strength and long-term durability in industrial applications.
XVolt electrical rubber mats are designed to minimize the risk of electric shock by preventing current leakage to the ground. Available in Class A, Class B, and Class C, XVolt insulation mats are suitable for different voltage levels up to 33 kV, making them ideal for use in substations, switchgear rooms, control panels, transformer yards and other critical electrical areas.
Additionally, Our XVolts insulation mats feature an anti-skid surface design, enhancing workplace safety by reducing slip and trip hazards in operational zones.
Technical Specification
| Material Composition | Tensile Strength (Min.) | Elongation at Break (Min.) | Leakage Current (Max.) | Insulation Resistance With Water When Tested At 5000 V (Min.) |
Flame Retardance (Max.) | Aging Properties At 70 ± 1°C For 168 Hours | Acid, Alkali & Oil Resistance | Working Temperature |
|---|---|---|---|---|---|---|---|---|
| Elastomer free from any insertion | 15N/mm2 | 250% | 10 mA | 1,00,000 MΩ | Extinguishes Within 5 Secs | T.S & E.B Not Less Than 75% Of Original Value | T.S & E.B Not Less Than 80% Of Original Value | -10°C To 55°C |
Stock Roll Size
| Product Code (SKU) | Class | Colour | Anti-Skid Design | Thickness | Width | Length | Weight/Roll |
|---|---|---|---|---|---|---|---|
| IM-XV-CA-BLADOT-2MM | A | Black | Top – Dotted & Bottom – Textured | 2.0 mm | 1 M | 10 M | 35 Kg(s) |
| IM-XV-CB-BLADOT-2.5MM | B | 2.5 mm | 42 Kg(s) | ||||
| IM-XV-CC-BLADOT-3MM | C | 3.0 mm | 49 Kg(s) | ||||
| IM-XV-CA-BLUDOT-2MM | A | Blue | 2.0 mm | 35 Kg(s) | |||
| IM-XV-CB-BLUDOT-2.5MM | B | 2.5 mm | 42 Kg(s) | ||||
| IM-XV-CC-BLUDOT-3MM | C | 3.0 mm | 49 Kg(s) | ||||
| Also available in 1M width x 2M Long cut sizes in ready stock. | |||||||
Maximum Voltage
| Product Code | Class | Max Use Voltage | AC Proof Voltage | Dielectric Voltage | Standard Thickness |
|---|---|---|---|---|---|
| IM-XV-CA | A | 3.3 kV | 10.0 kV | 30.0 kV | 2.0 mm |
| IM-XV-CB | B | 11.0 kV | 22.0 kV | 45.0 kV | 2.5 mm |
| IM-XV-CC | C | 33.0 kV | 36.0 kV | 65.0 kV | 3.0 mm |
Customize Your Mat
| Customisation | Options |
|---|---|
| Width | Max. width upto 1500mm |
| Length | Max. length upto 50M |
| Color | Red, Grey, Green, Yellow or any other colour subject to techno-commercial feasibility |
Note: Manufacturing Tolerance Of +/- 10% On Thickness, +/- mm On Width And Length Up To 600 mm And +/- 20 mm For Higher.

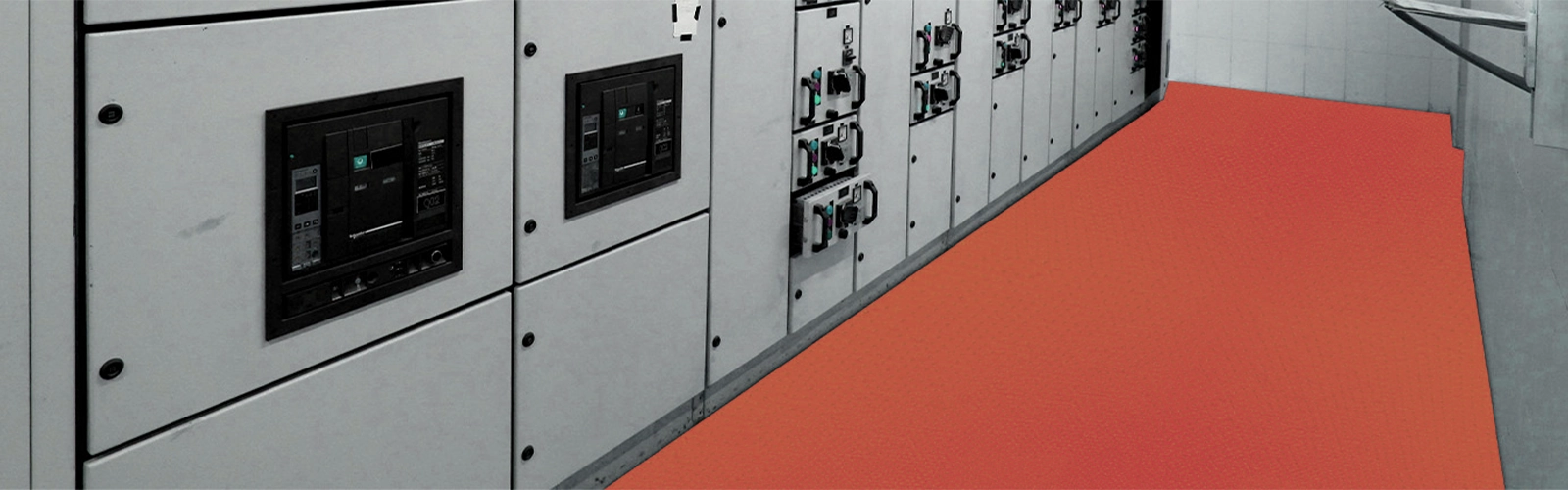

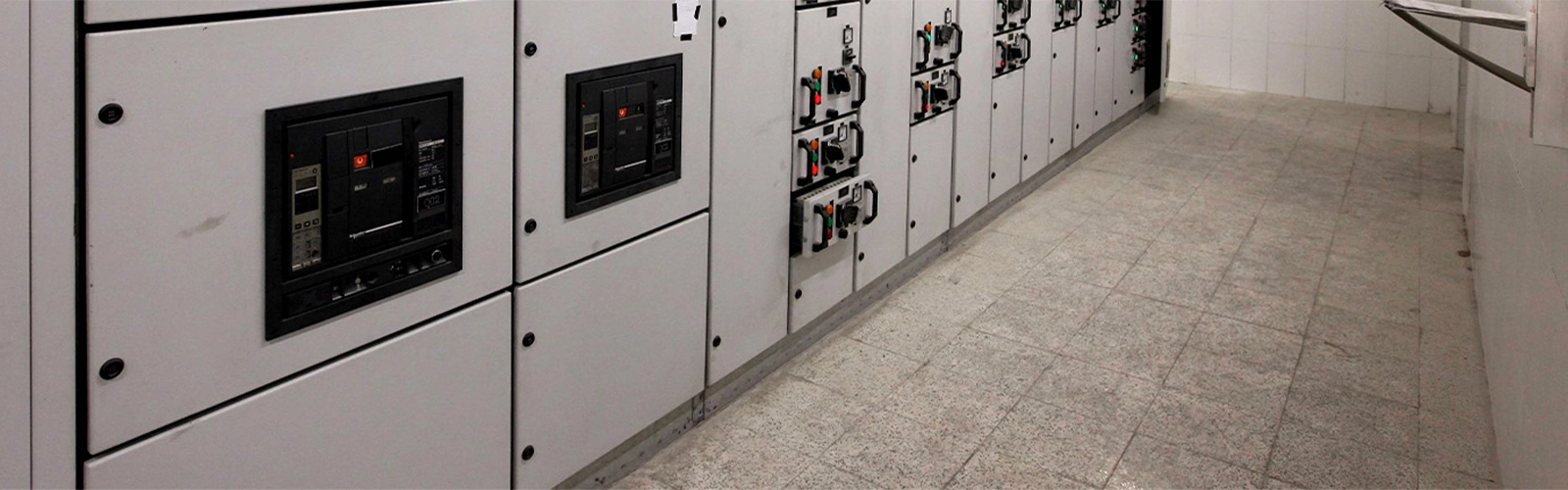

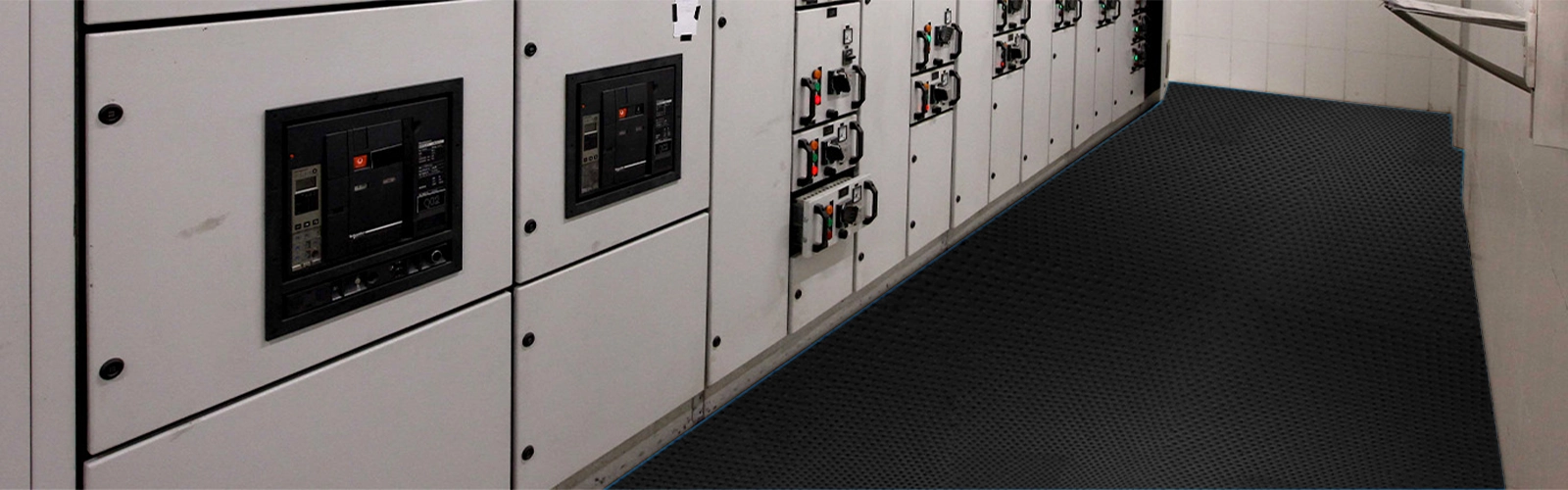

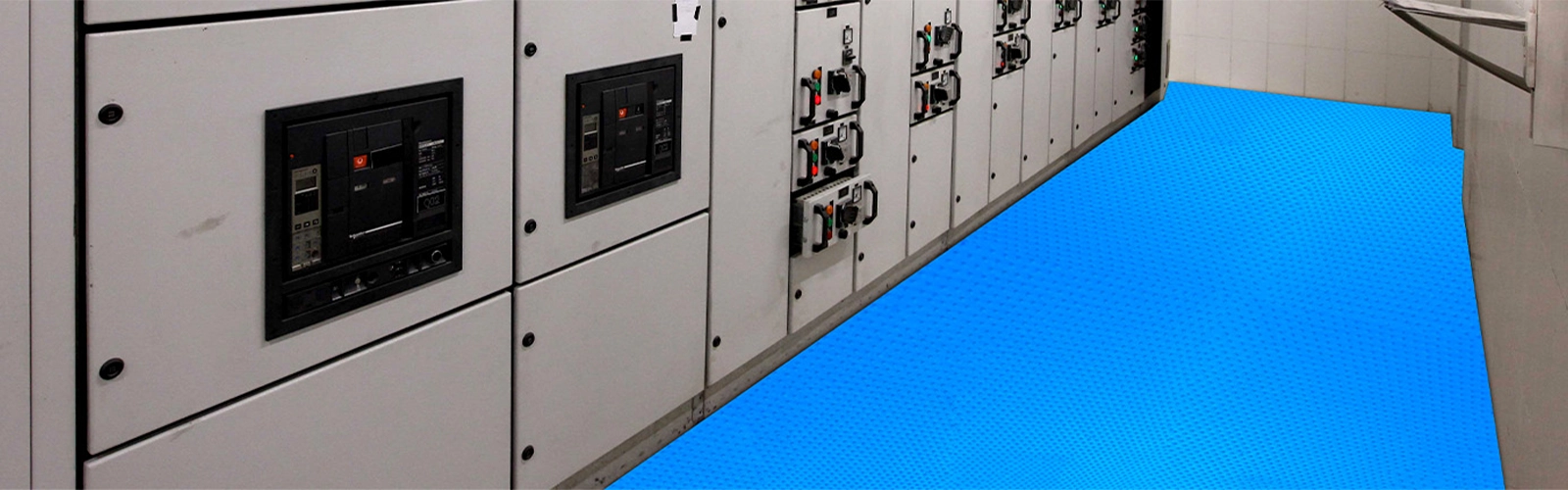

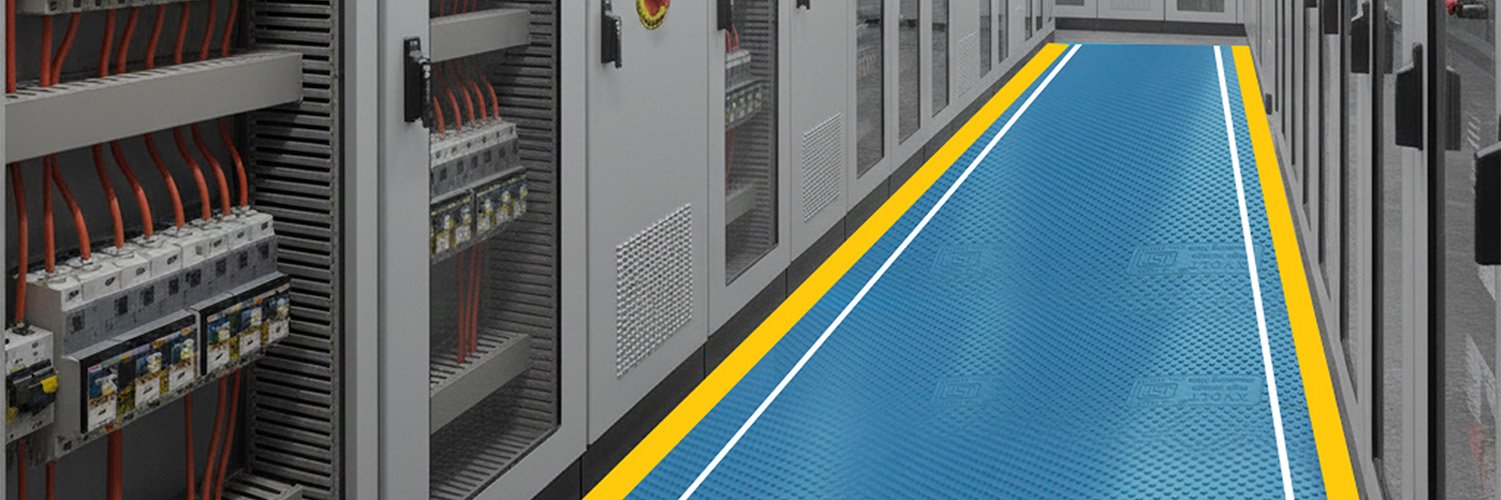

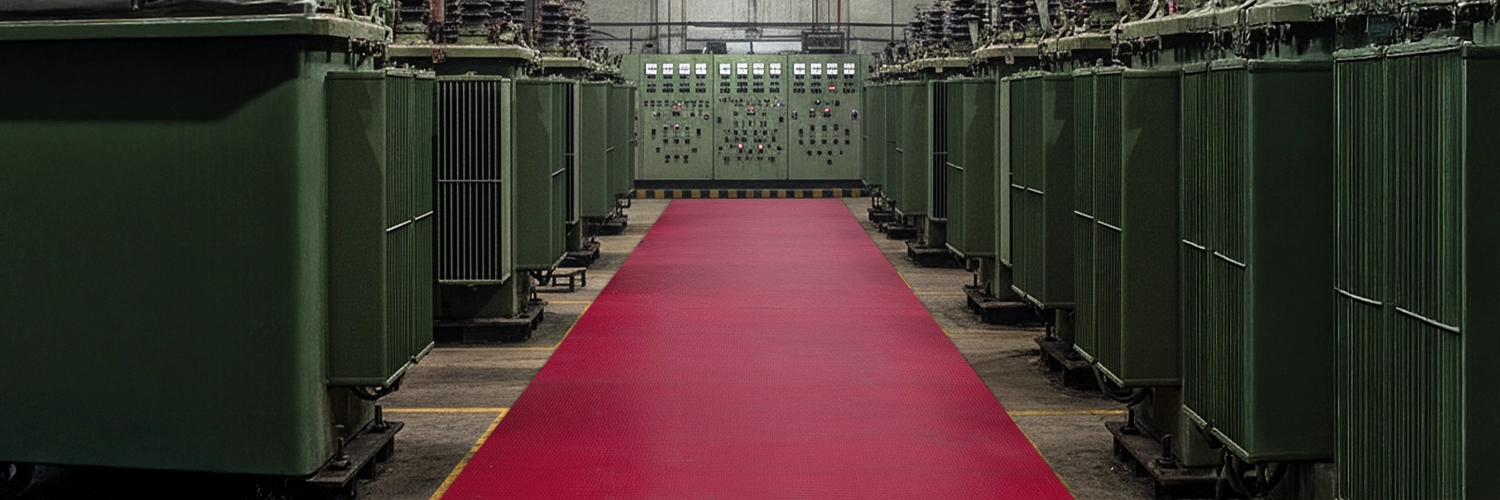

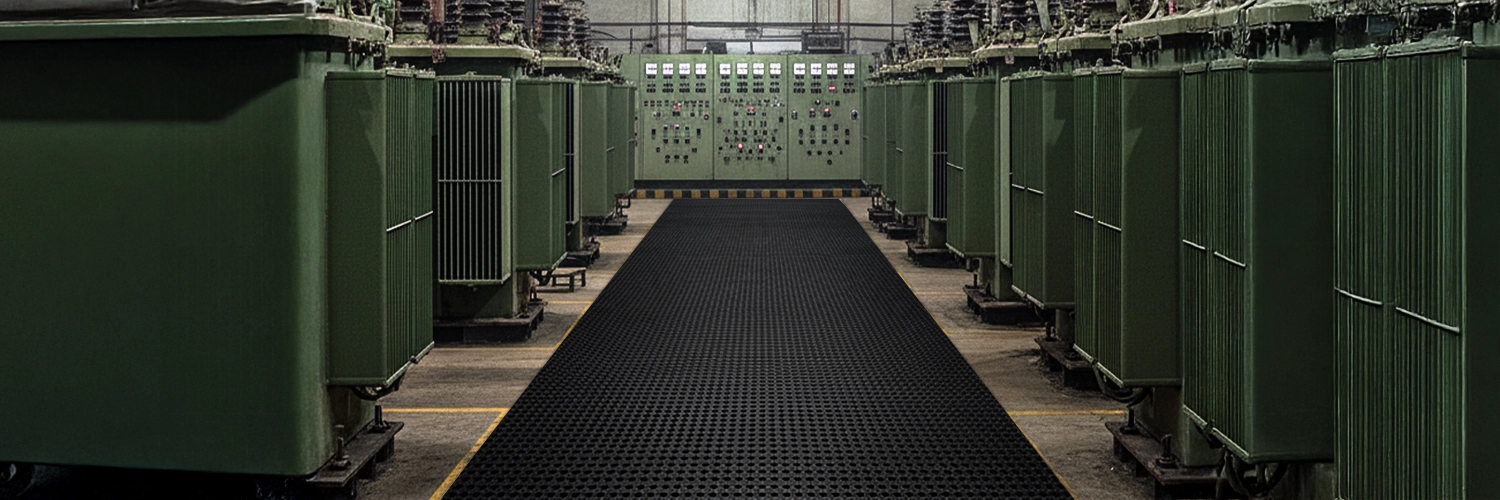

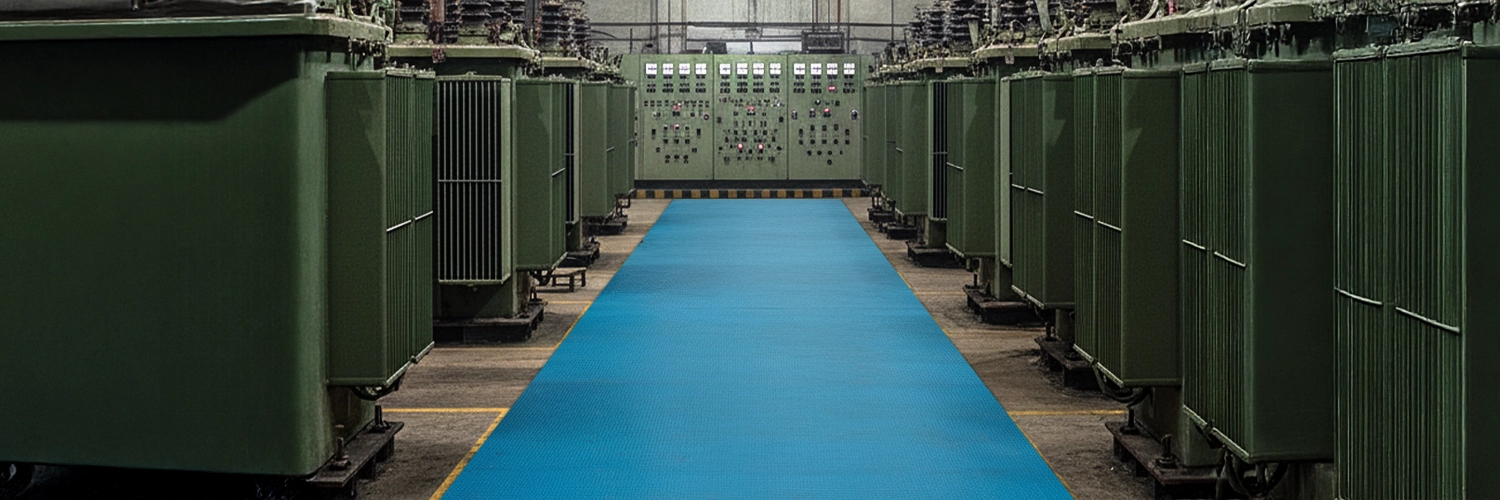

See the Difference Safety Makes
Common Uses of IS15652 Insulating Mats for Workplace Safety
Duratuf XVolt electrical insulating mats are common in high-voltage application areas of the industries. They are installed in the following areas:

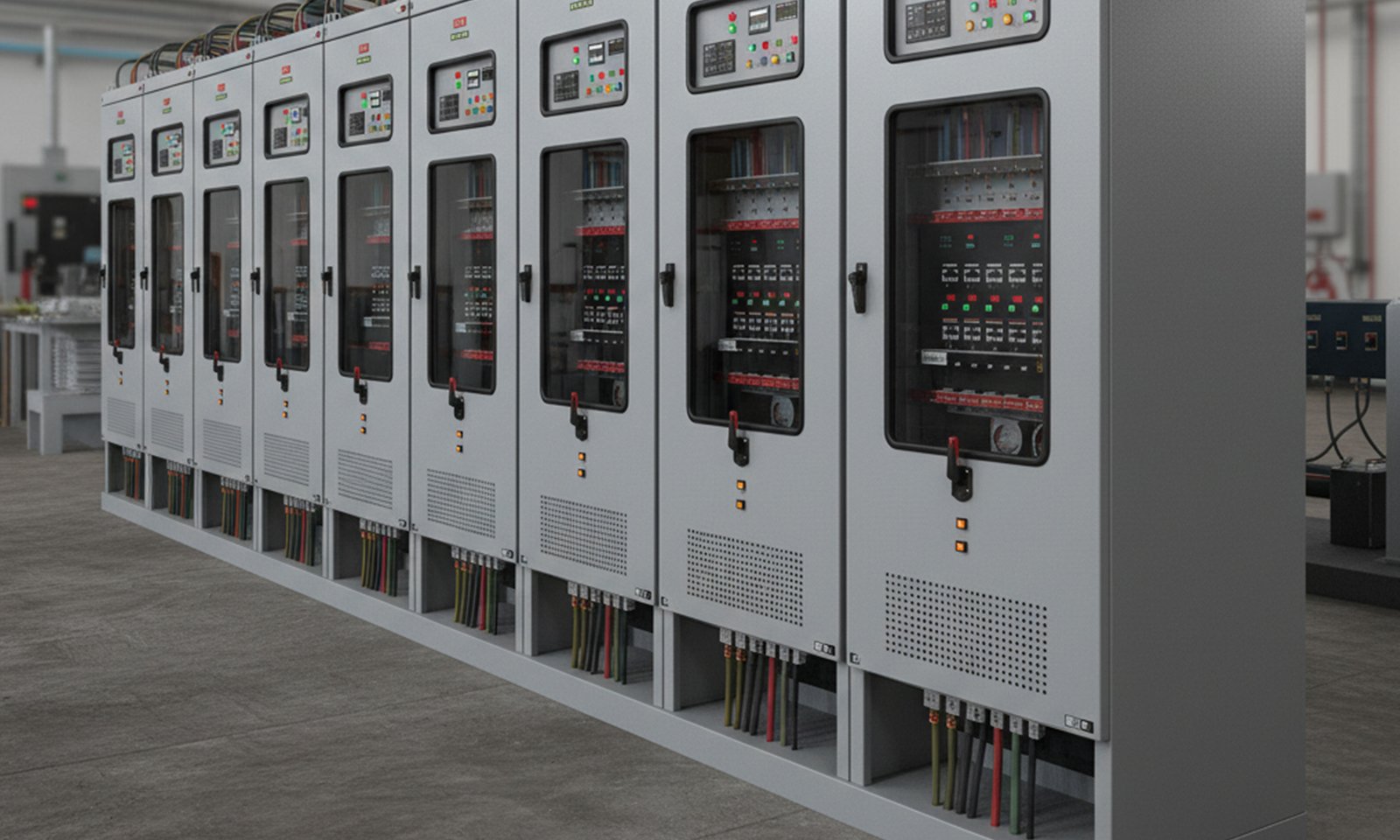

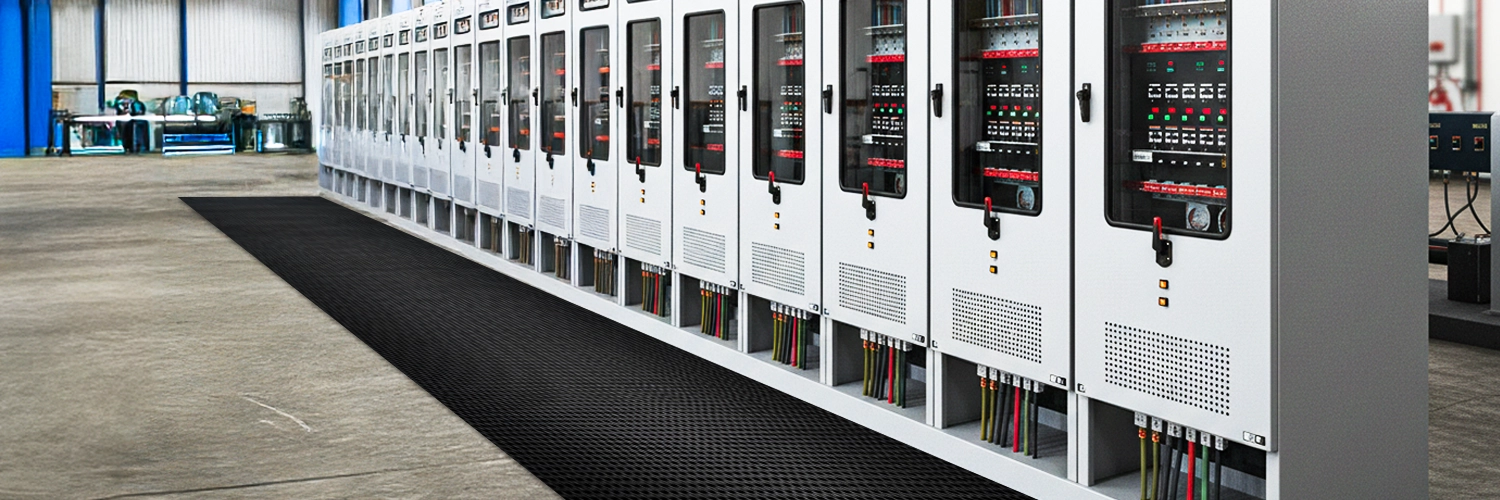

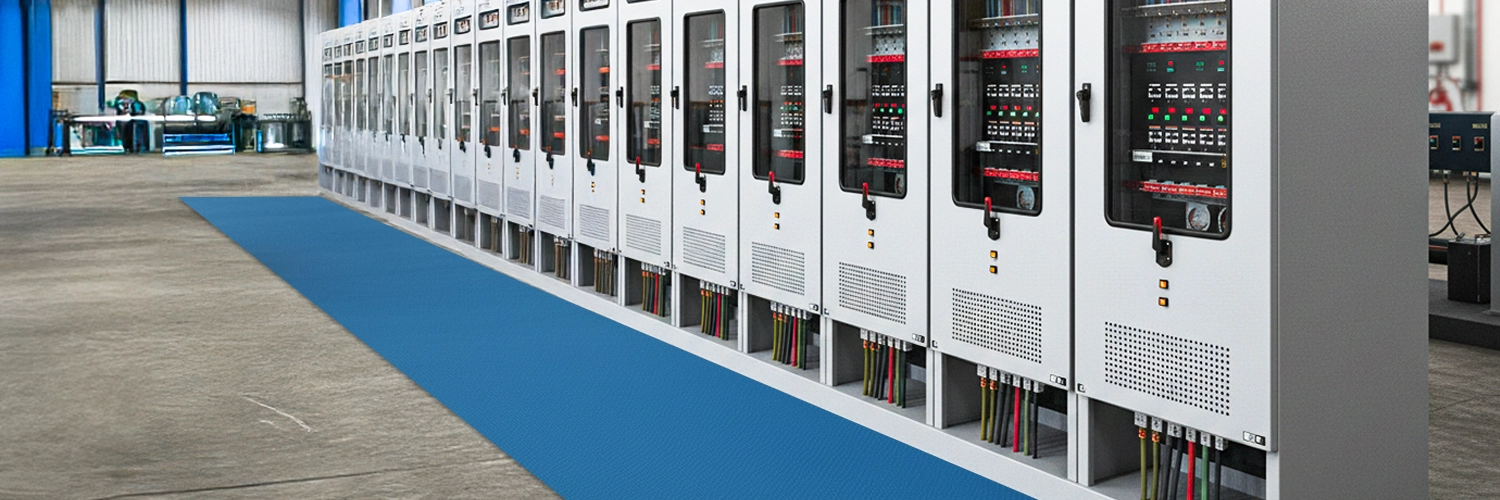

- HT/LT Panels
- Switchgear & Switchboards

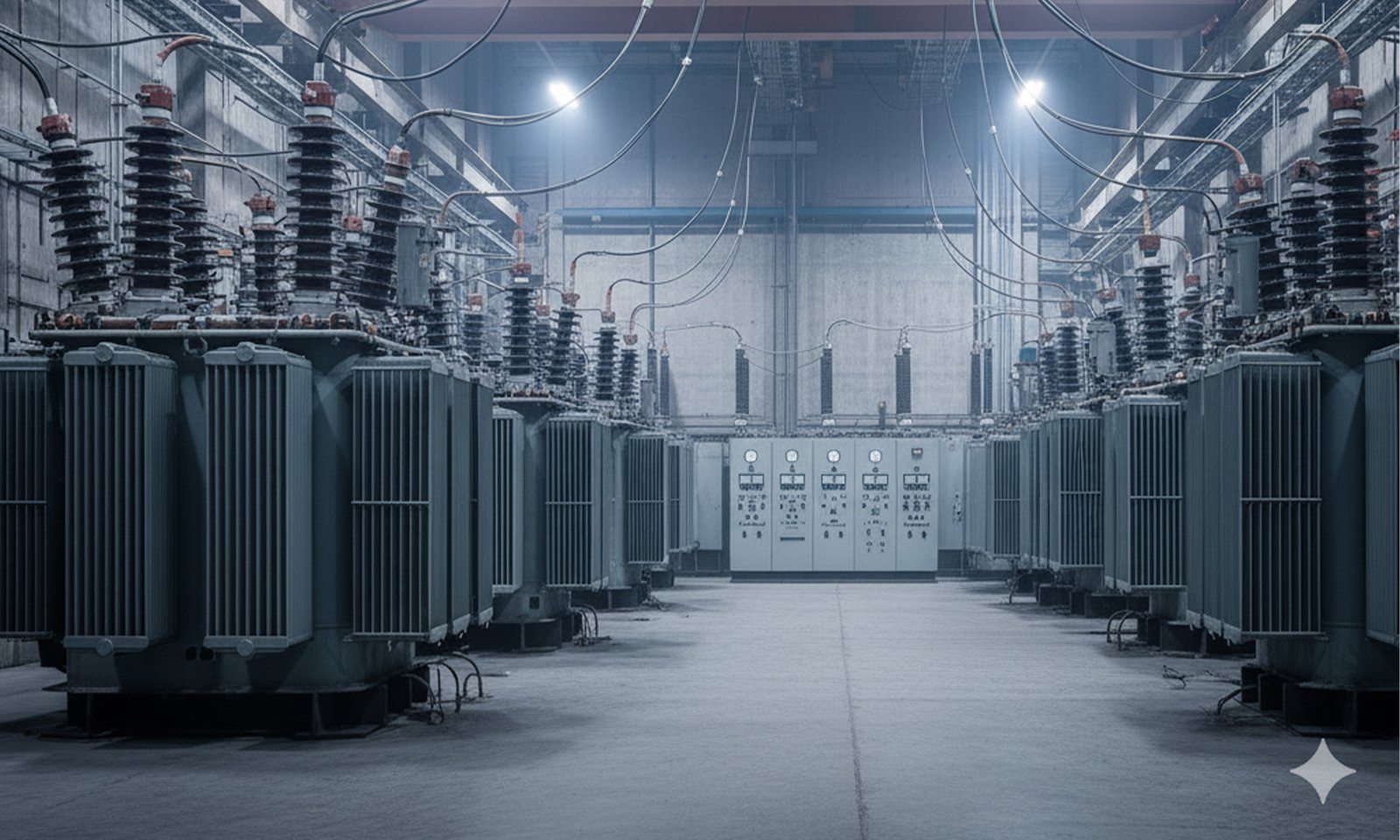

- Transformer Rooms

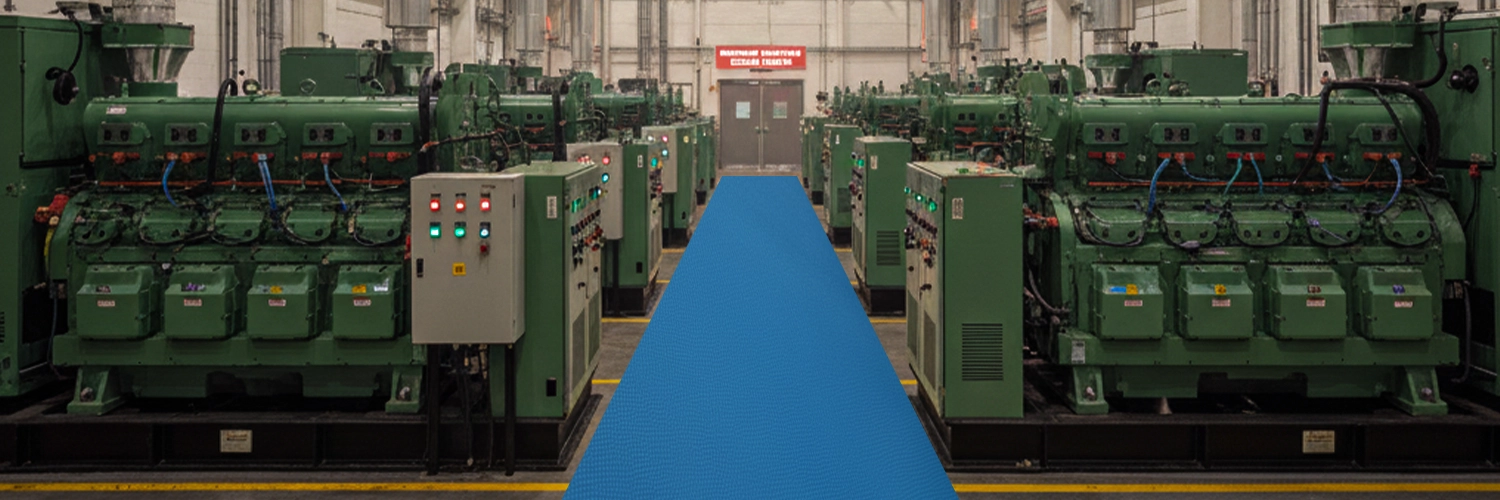

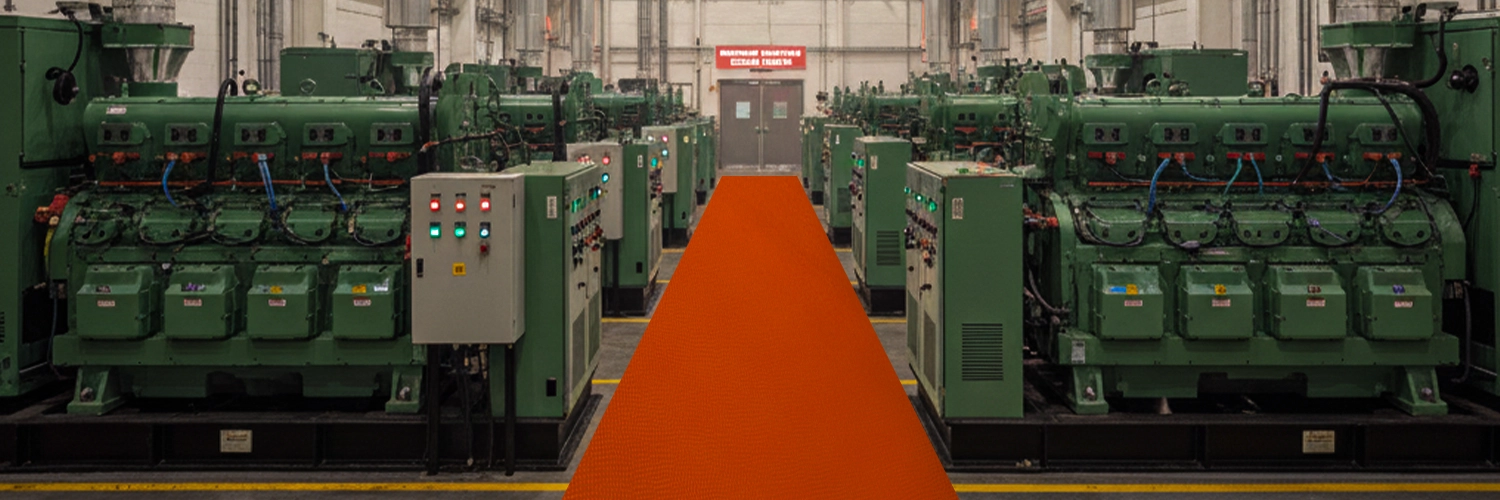

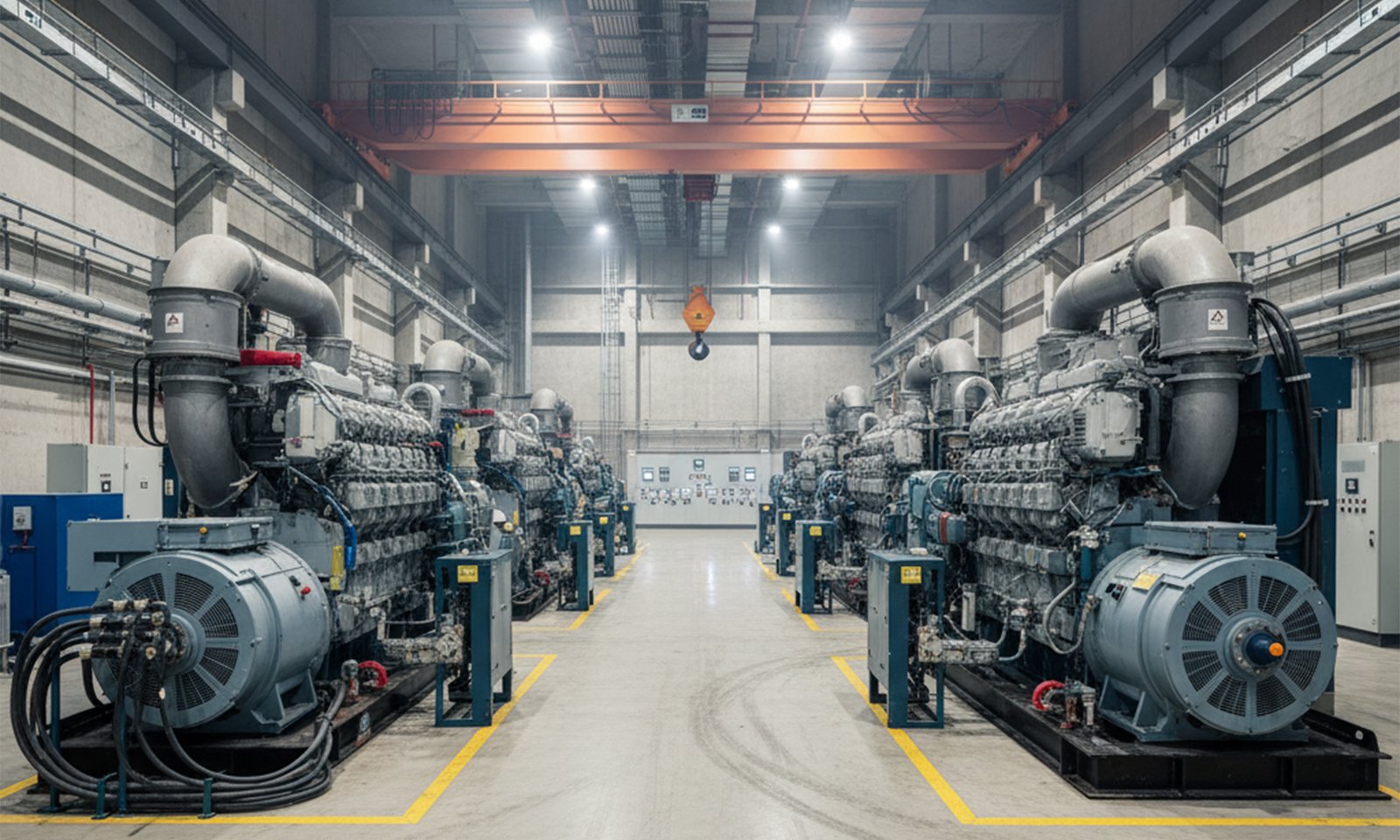

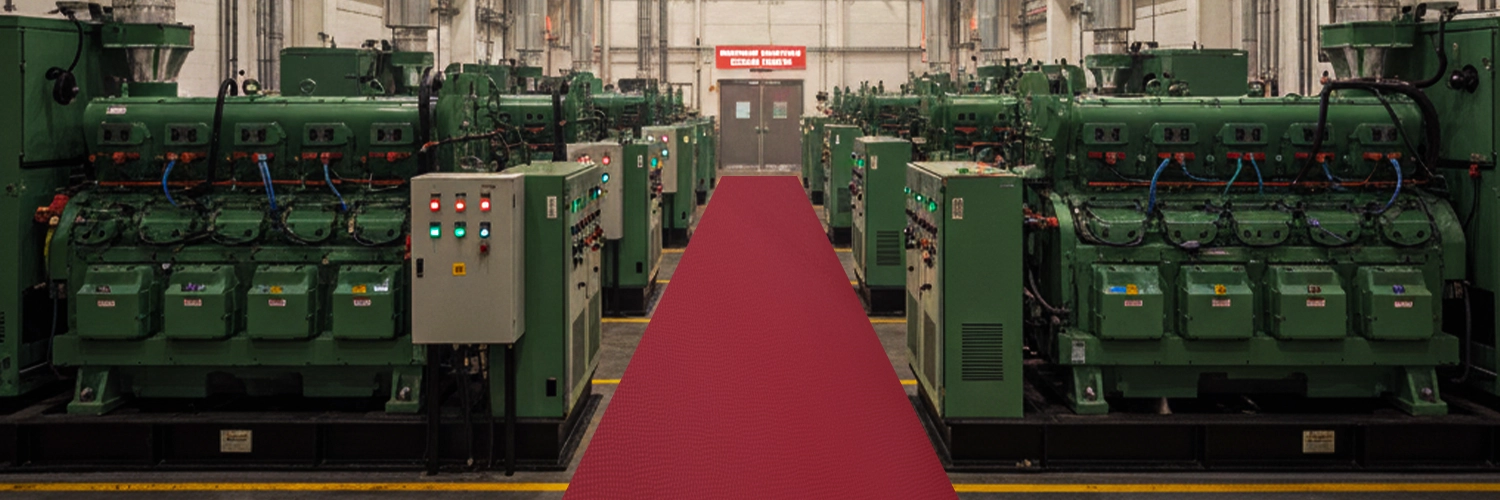

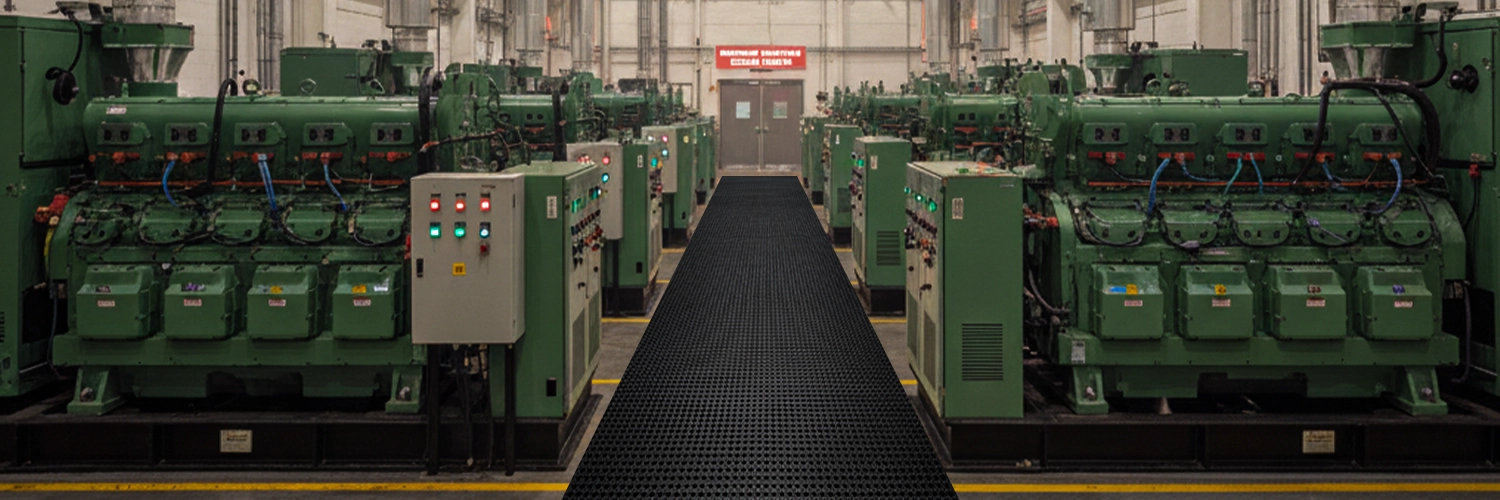

- Generator Rooms
- Lift rooms
- Bus Bar Areas
- Control Panels & VFD Panels

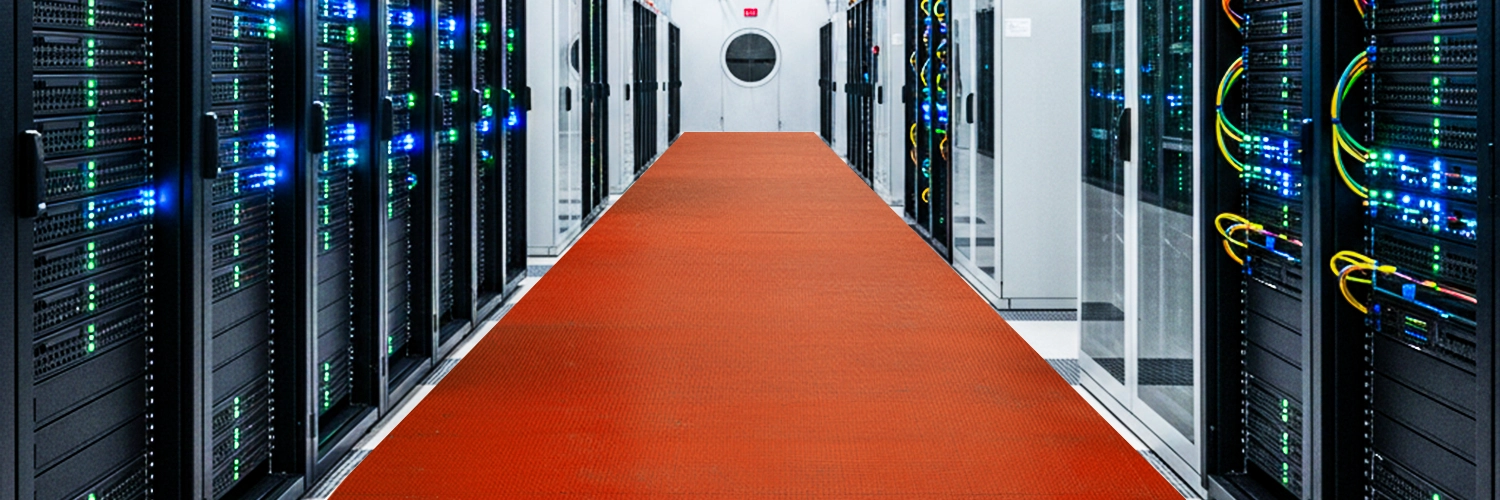

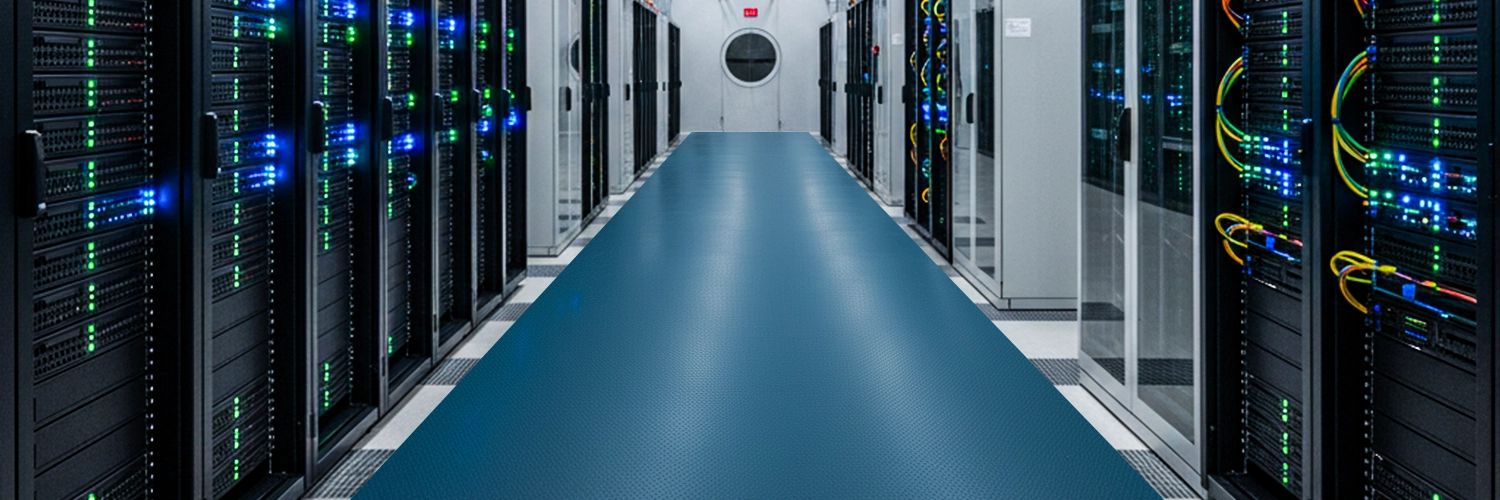

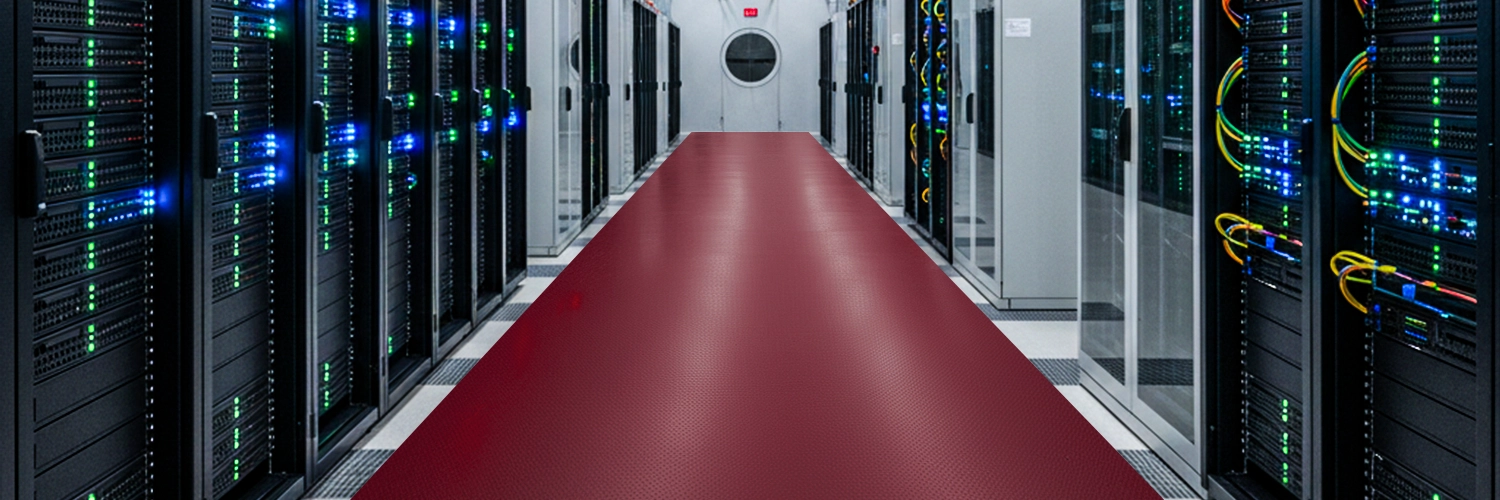

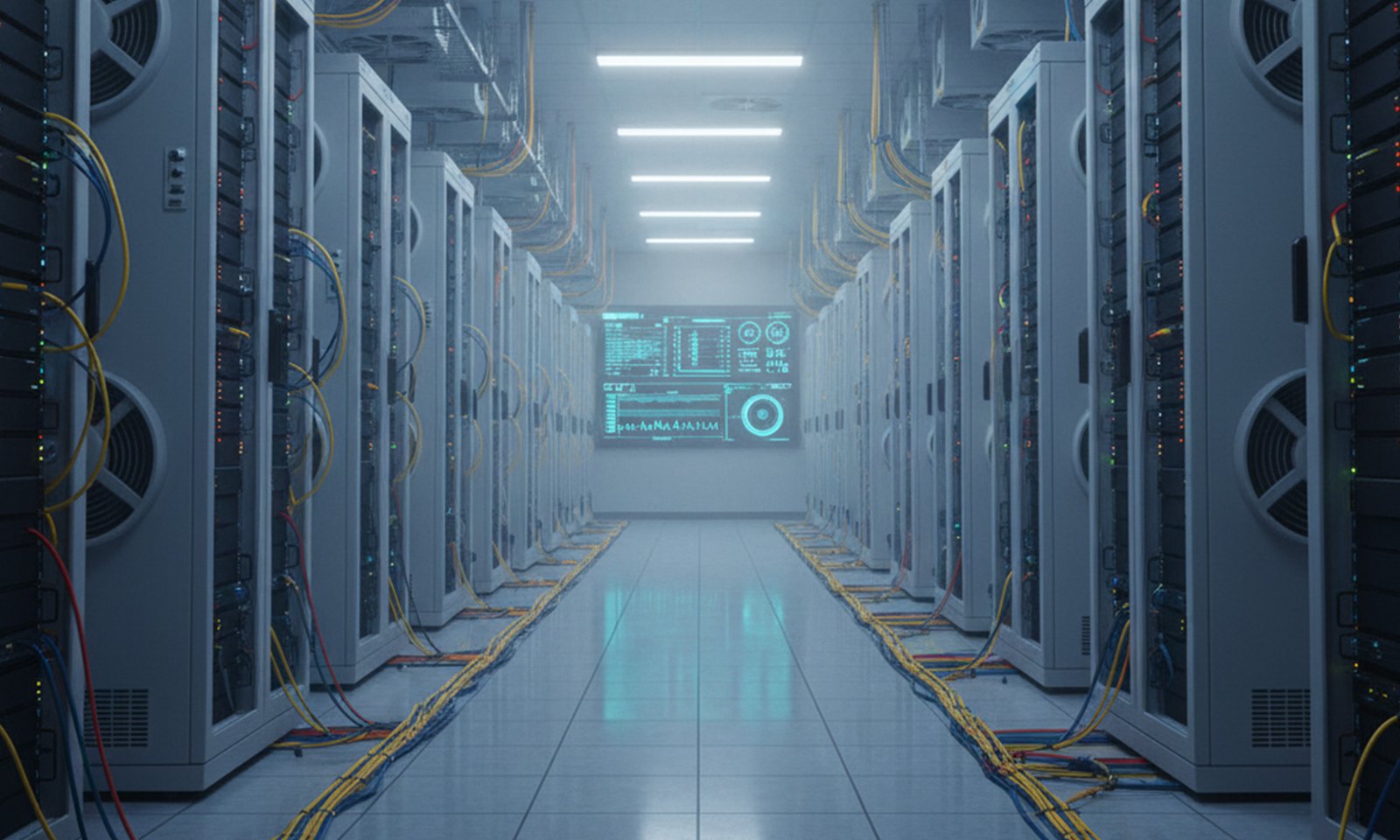

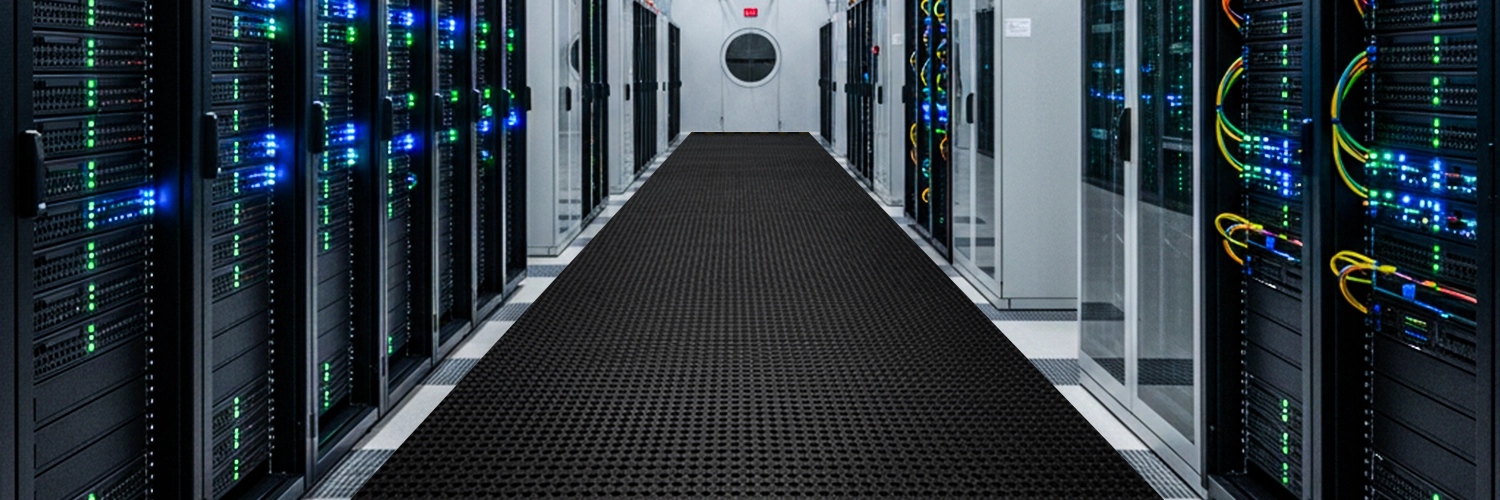

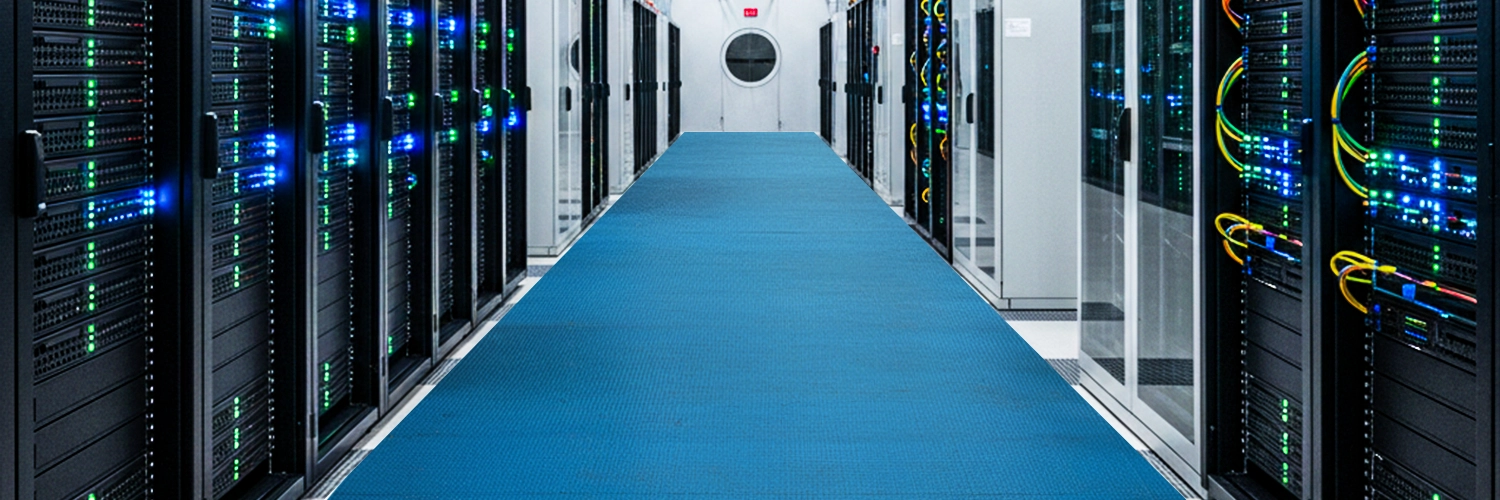

- Data Centers & UPS Rooms
- Electrical Substations and Testing Labs
Top Features or Properties of XVolt Insulating Mats
Duratuf XVolt is manufactured to deliver consistent electrical safety, compliance, and long-term value for industrial applications where reliability is critical. Designed as per IS 15652:2006 standards, XVolt mats help businesses minimize electrical risks while ensuring operational continuity.
Manufactured and tested to meet Indian electrical safety standards, ensuring compliance in high-voltage environments
Available in Class A, B, and C, suitable for installations up to 33 kV across diverse industries
Made from premium elastomer for superior insulation, mechanical strength, and extended service life
Enhances workplace safety by reducing slip hazards and minimizing fire risks during electrical faults
Large inventory ensures quick dispatch and reduced downtime for ongoing projects
Technical guidance and customization options to match specific application requirements
Why Choose Duratuf for Electrical Rubber Matting
Brand Reputation
Proud 'Made in India'—'Made for India product'
Reviews and Rating
3793+ happy customers worldwide with 4.8 Google Rating for service
Ready Stock
10,000 sq m ready stock in warehouses allover India
Sales Support
Product selection guidance to after-sales queries
Customer testimonials and success stories
Take a look at what our customers think and say about us
Insulated mat from Duratuf Products are not like other common commercial rubber mats. Easy to use, flexible, durable and the best quality at affordable price. I strongly recommended these to ensure the safety of workplace.
Bruce Budden
We have purchased insulating mats from Duratuf because of their high quality. I appreciate Mr. Samsul Haque sir as he handled dispatch and product quality. Mr. Debapriyo Nandi, logistic Coordinator assists for transportation & excellent packing quality.
Ajinkya Vartak
Quality of the products are reallly good and trustworthy. People of this organization are very professional and proactive.
Suresh Babu Dasari
Frequently Asked Questions: XVolt Electrical Insulating Mats - IS 15652:2006
Which standard does Duratuf XVolt comply with?
Duratuf XVolt electrical insulating mats comply with the IS 15652:2006 standard. This standard has been set by the Bureau of Indian Standards (BIS) and has been updated in the year 2006.
What voltage classes are available in Duratuf XVolt mats?
The IS 15652 electrical rubber mat specification list includes three classes- Class A (3.3 kV), Class B (11 kV), and Class C (33 kV).
Are Duratuf XVolt mats fire and slip resistant?
Yes, Duratuf XVolt mats have flame retardance property and extinguishes within 5 seconds. In addition, they have an anti-skid property as they come in a dotted surface texture.
Can Duratuf XVolt mats be customized in size?
We understand that your application area may require specialized sizes of electrical mats. You can tailor-make the IS 15652 rubber mat as per your required dimensions for your application area.
How should Duratuf XVolt insulating mats be maintained?
Keep your mats clean and get rid of dust, dirt, moisture, and greases. Besides, you should avoid subjecting them to extreme temperatures, harsh chemicals, and excessive physical stress. Immediately repair or replace the insulating mats whenever you see any damage. Reach out to our experts for a detailed maintenance guideline.
Why choose Duratuf XVolt for electrical safety?
If you are looking for quality-assured IS 15652 2006 certified electrical insulating mats in India, you should choose Duratuf XVolt mats. They undergo rigorous quality control and comply with the industrial standards.
