- Need Fast Delivery From Localized Suppliers?
- Looking For An Authentic Electrical Mat With Prominent ISI Markings?
Choose Duratuf’s ERDA Type-tested X-Volt Insulating Mats- 10000 Sq m Ready Stock In 6 Warehouses Across India. Contact Us Today!
Uncompromised Electrical Safety At Your Workplace
X-Volt Electrical Insulating Mats (IS 15652:2006)

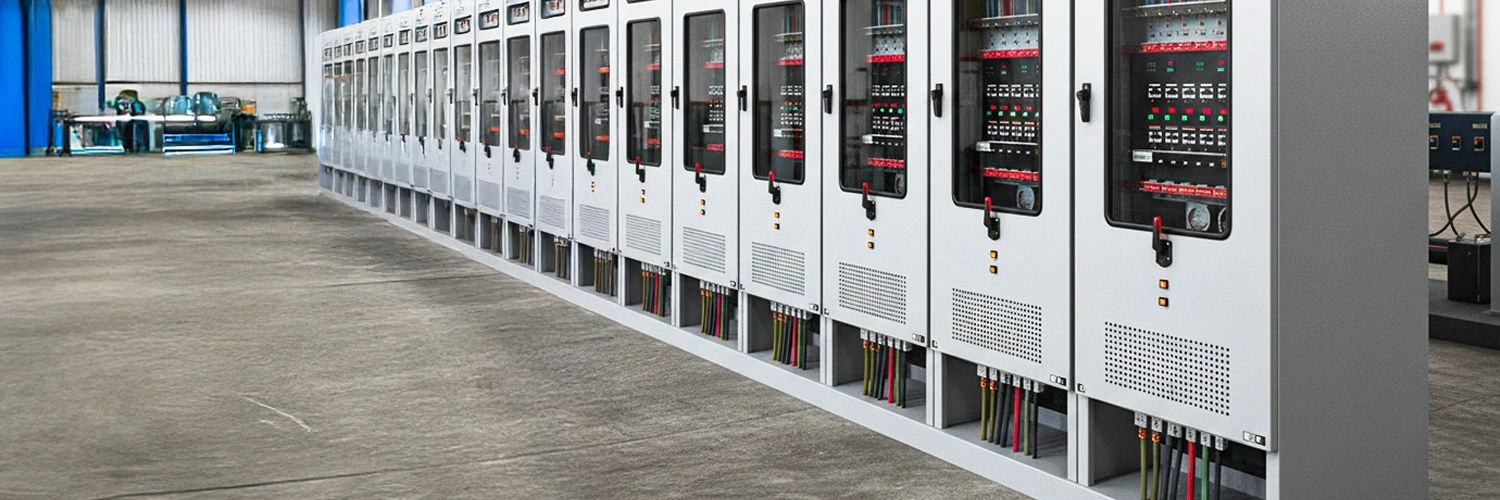

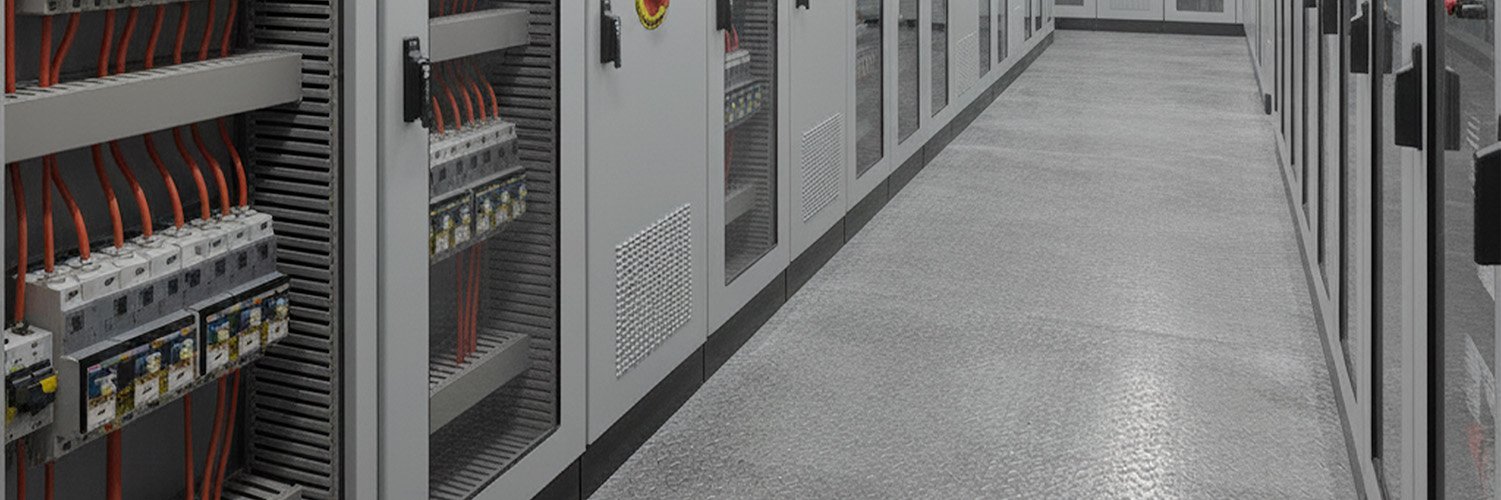

Duratuf Products offers Electrical Insulating Mats that have BIS markings on the products. Our electrical rubber mats minimize electrical hazards at the workplace. These mats are used to cover the flooring below the control panels. Moreover, they are also used in front of high voltage equipment like switchboards, busbars, transformers, lift machine rooms etc. The Duratuf X-Volt electrical mat is manufactured according to the latest Indian Standard (IS 15652:2006) for electrical insulation.
The IS 15652:2006 standard is an updated version of the IS 5424: 1969 insulating mat standard. It is tested more rigorously, following stringent methods.
Users consider the X-Volt high voltage insulating mat as an essential safety product.
These safety products are mainly utilized for the safety of workers during the installation & operation of electrical equipment due to the possibility of current leakage.
These insulating rubber rolls prevent one from getting injured by electrical hazards. The ISI Marked Insulating Mats are manufactured by using elastomer (precisely PVC Compound) all along with anti-skid deviations (i.e. small dots) upon the top to avoid slippage.
It’s available in 2mm, 2.5mm and even 3.0mm thickness, depending on the work/usage voltage. The insulating properties of an electrical rubber matting roll depend on its thickness as it increases with the thickness of the mat.
The X-Volt electrical mat comes in blue and black colour. However, we can customise the electrical insulating mats in red, green, yellow and grey colours (as per technocommercial feasability).
The IS 15652 electrical rubber mat price list also varies accordingly. BIS License Copy and CPRI/ERDA Type Test Certificates are available on request. The manufacturer’s Test Certificate is provided along with the supply.
Buyers often have to repetitively ask their electrical rubber mat supplier for the necessary documents. However, we can promise you a seamless buying process. Thus, we provide all the insulating mat test certificates along with every shipping consignment, even without you asking for it!
Download our Brochure now for more details about our insulated rubber mat. Want a quote? Talk to our expert today!
X-Volt Electrical Insulating Mats Gallery
Years of Business
Countries Exported
Happy Customers
Successful Projects
Our Certifications & Memberships
Quality is our priority. Our certifications are testament to our commitment.
Features & Benefits of the X-Volt Electrical Mats
● Enhanced Durability: Our electrical mats boast a significantly longer lifespan compared to cheaper alternatives, thanks to the superior quality materials used in their construction.
● Authenticity Assurance: By choosing our product, buyers can be confident they’re investing in genuine, certified insulating mats, not substandard imitations often found in the market.
● Value-Added Warranty: With a generous 24-months warranty, our product not only ensures quality but also offers a sustainable solution, providing peace of mind to purchasers.
● Longevity Guarantee: Designed to endure, our electrical mats are built to last a minimum of 5-6 years, providing reliable insulation and safety for an extended period.
● Aesthetic Appeal: Beyond functionality, our mats add a touch of vibrancy to any workplace, enhancing its visual appeal and leaving a positive impression on clients and visitors alike.
Applications of the X-Volt Electrical Mat
Duratuf X-Volt electrical rubber sheet flooring is used in different industries dealing with high-voltage applications like manufacturing, power, cement, marine, and other major industries. DURATUF ISI Marked Electrical Insulating Mat (IS 15652:2006) is used near:
● HT/LT Control Panels
● Switchboards
● Electrical Substations
● Bus Bars

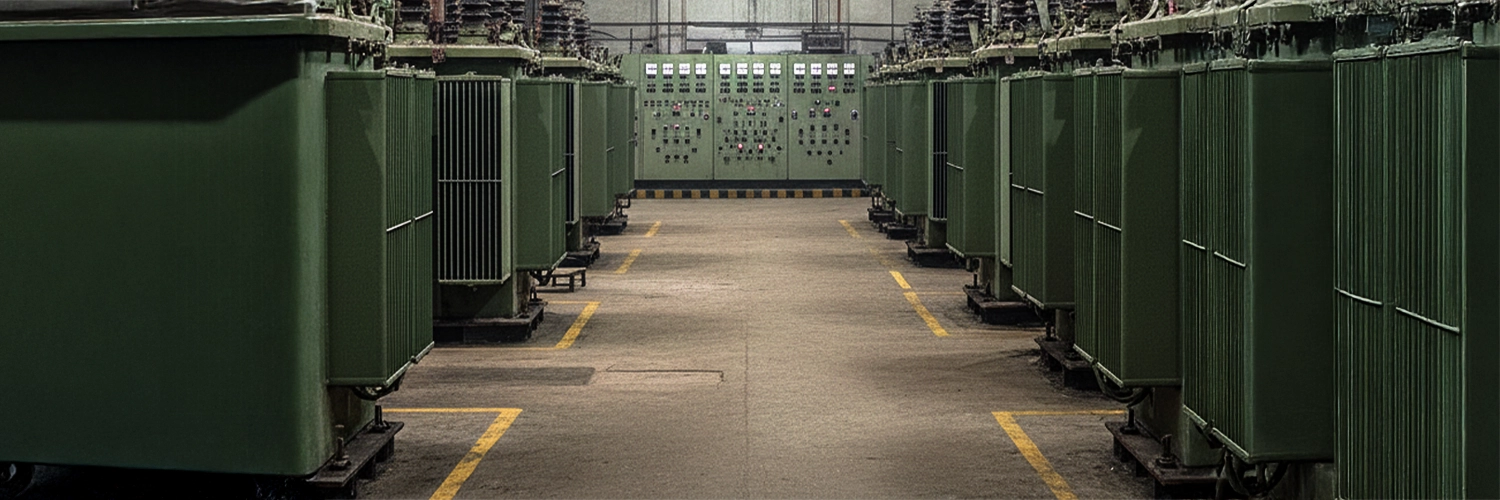

● Transformers, Generator & Lift Rooms etc
Technical Specification of the X-Volt Electrical Mat
Specifications of the X-Volt Electrical Mat
| Characteristics | Values |
|---|---|
| Material Composition | Elastomer free from any insertion. |
| Tensile Strength (Min.) | 15N/mm2 |
| Elongation at Break (Min.) | 250% |
| Leakage Current (Max.) | 10 mA |
| Insulation Resistance With Water When Tested At 5000 V (Min.) | 1,00,000 MΩ |
| Flame Retardance (Max.) | Extinguishes Within 5 Secs |
| Aging Properties At 70 ± 1°C For 168 Hours | T.S & E.B Not Less Than 75% Of Original Value |
| Acid, Alkali & Oil Resistance | T.S & E.B Not Less Than 80% Of Original Value |
| Working Temperature | -10°C To 55°C |
| Tolerance Level: ±10% on thickness, ± 15 mm on width & length up to 600 mm and ± 20 mm for higher. | |
Stock Roll Sizes
| Product Code (SKU) | Class | Colour | Anti-Skid Design | Thickness | Width | Length | Weight/Roll |
|---|---|---|---|---|---|---|---|
| IM-XV-CA-BLADOT-2MM | A | Black | Top - Dotted & Bottom - Textured | 2.0 mm | 1 M | 10 M | 35 Kg(s) |
| IM-XV-CB-BLADOT-2.5MM | B | 2.5 mm | 42 Kg(s) | ||||
| IM-XV-CC-BLADOT-3MM | C | 3.0 mm | 49 Kg(s) | ||||
| IM-XV-CA-BLUDOT-2MM | A | Blue | 2.0 mm | 35 Kg(s) | |||
| IM-XV-CB-BLUDOT-2.5MM | B | 2.5 mm | 42 Kg(s) | ||||
| IM-XV-CC-BLUDOT-3MM | C | 3.0 mm | 49 Kg(s) | ||||
| Also available in 1M width x 2M Long cut sizes in ready stock. | |||||||
Maximum Voltage
| Product Code | Class | Max Use Voltage | AC Proof Voltage | Dielectric Voltage | Standard Thickness |
|---|---|---|---|---|---|
| IM-XV-CA | A | 3.3 kV | 10.0 kV | 30.0 kV | 2.0 mm |
| IM-XV-CB | B | 11.0 kV | 22.0 kV | 45.0 kV | 2.5 mm |
| IM-XV-CC | C | 33.0 kV | 36.0 kV | 65.0 kV | 3.0 mm |
Customize Your Mat
| Customisation | Options |
|---|---|
| Width | Max. width upto 1500mm |
| Length | Max. length upto 50M |
| Color | Red, Grey, Green, Yellow or any other colour subject to techno-commercial feasibility |
Note: Manufacturing Tolerance Of +/- 10% On Thickness, +/- mm On Width And Length Up To 600 mm And +/- 20 mm For Higher.
Testimonials
What do our Clients say about us?
Muhammed Thoufeek
Google Review
Arun P
Google Review
Alfonso Meneses
Google Review
OM Industries
Google Review
Suresh Babu Dasari
Google Review
Ajinkya Vartak
Google Review
Bruce Budden
FAQ
Frequently Asked Questions by Our Customers
Are these X-Volt Electrical Insulating Mats approved by BIS?
All X-Volt Electrical Insulating mats are IS 15652 marked on every metre and are approved by the Bureau of Indian Standards for use as Insulating Mats for Electrical Purposes.
Which X-Volt Electrical Safety Mat should I choose for my workplace?
We have the widest range of Electrical Safety Mats and the right selection depends upon your needs and budget. First, you need to determine the maximum voltage of the equipment and select the matching or higher Class Electrical Mats. You may also choose from blue or black colour if you are looking at budget options or if your budget permits then go for X-Volt Premium Insulating Mat Series.
What are the benefits of X-Volt Insulating Mats over Safevolt?
X-Volt Electrical Insulating Mats is manufactured for price-sensitive customers who need a basic no-frills product at low prices. Customers who are looking for more features and better aesthetics can go for the X-Volt Premium Insulating Mats Series or Safevolt Insulating Mats.
Can I permanently fix these X-Volt Insulation Mats on the floor?
Yes, all X-Volt Insulating Mats can be easily fixed on the floors permanently using adhesives such as Fevicol SR 998 Grade. The permanent establishment of electrical rubber sheet flooring can be done after having the accurate measurement and alignment of the safety mat with the application area. We even undertake to fix along with materials subject to fulfillment of min. Criteria. Please visit our blog to discover Electric Insulation Mats from Duratuf.
What is the information required for ordering Insulating Mats?
Ordering insulating mats requires key details:
- Mat Specs: Type (standard like IEC 61111), thickness (based on voltage), and size (width is often standard, length may need specifying). Color choice might be available.
- Order Details: Quantity (rolls or square footage) and delivery information.
- Additional Info (optional): Minimum order quantity (check supplier) and intended application (helps them recommend the best option).
- Always check safety regulations to ensure the mats meet electrical work standards.
What if I am getting lower Electrical Insulating Mat price?
We at Duratuf do not claim we are the cheapest. But we have competitively priced Electrical Insulating Mats with superior quality and performance that deliver the best lifetime value.
What do I do if my question is not available here?
If you have a question and it is not listed above, you can visit our detailed FAQ Section on our homepage or connect with us directly for any assistance. Our customer care team shall be happy to help you.
What if I am getting lower Electrical Insulating Mat price?
We at Duratuf do not claim we have the cheapest IS 15652 electrical rubber mat price list. But we have competitively priced Electrical Insulating Mats with superior quality and performance that deliver the best lifetime value.
